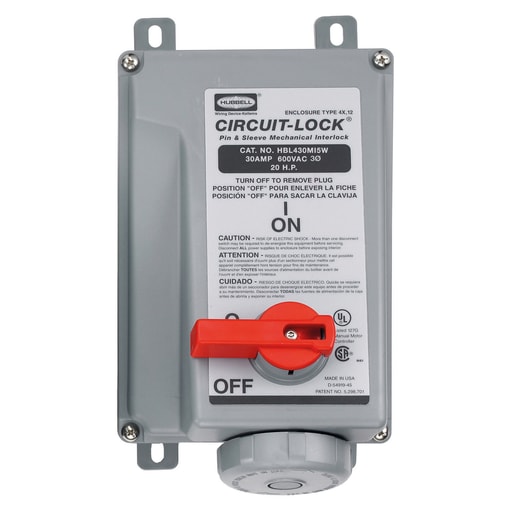

Hubbell Wiring Device - Hubbell HBL430MI5W Pin & Sleeve IEC Unfused Circuit-Lock® Mechanical Interlock, 30A 3P4W, 3ø 600V, IP67, NEMA 4X, 12
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585405964
Amperage - 30 Amp
Applications - High Ampacity Watertight Connections
Catalog Number - HBL430MI5W
Color - Black
Packaging
1 ea
EAN
00783585405964
Part #
107994
Catalog #
HBL430MI5W
Commercial reference
HBL430MI5W
12-Digit UPC:
783585405964
Amperage:
30 Amp
Applications:
High Ampacity Watertight Connections
Catalog Number:
HBL430MI5W
Color:
Black
Conductor Size:
12-8 AWG
Country of Origin:
Puerto Rico
Current:
30 Amp
ERP_productname:
HUB HBL430MI5W PS, IEC, MECHINT, 3P4W, 30A 3P 600V, W/T
Family Brand Name:
Hubbell Wiring Device-Kellems
Heights:
7.2 Inch
Length:
12.3 Inch
Material:
Thermoplastic
Mounting Type:
Screw
Number of Phases:
3 Phase
Number of Poles:
3 Pole
Number of Wires:
4-Wire Grounding
Size:
Standard
Sub Brand:
Pin and Sleeve Devices
Tc Connection:
Pressure Plate
Type:
Mechanically Interlocked Single
Voltage:
600 Volt
Wattage:
18000 Watt
Widths:
7.9 in
Wire Size:
12-8 AWG
SoneparProductId:
SKU_US_26383676
