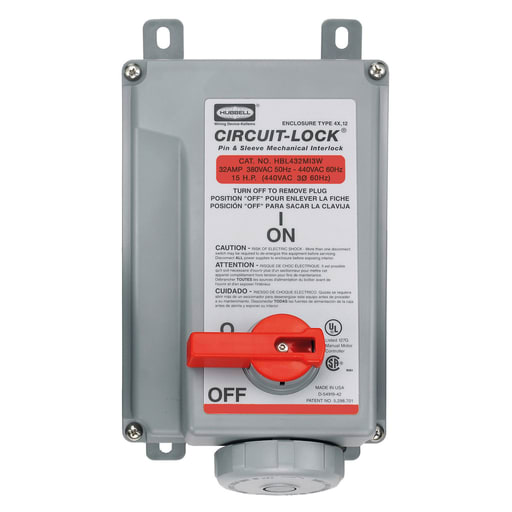

Hubbell Wiring Device - Hubbell HBL432MI3W Pin & Sleeve IEC Unfused Circuit-Lock® Mechanical Interlock, 32A 3P4W, 380/440V 50/60Hz, IP67, NEMA 4X, 12
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585405995
Amperage - 32 Amp
Applications - High Ampacity Watertight Connections
Catalog Number - HBL432MI3W
Color - Red
Packaging
1 ea
EAN
00783585405995
Part #
435775
Catalog #
HBL432MI3W
Commercial reference
HBL432MI3W
12-Digit UPC:
783585405995
Amperage:
32 Amp
Applications:
High Ampacity Watertight Connections
Catalog Number:
HBL432MI3W
Color:
Red
Conductor Size:
12-8 AWG
Country of Origin:
USA
Current:
32 Amp
ERP_productname:
HUB HBL432MI3W PS, IEC, MECHINT, 3P4W, 32A 380-480V,W/T
Family Brand Name:
Hubbell Wiring Device-Kellems
Heights:
7.3 Inch
Length:
12.3 Inch
Material:
Thermoplastic
Mounting Type:
Screw
Number of Phases:
3 Phase
Number of Poles:
3 Pole
Number of Wires:
4 Wire
Size:
Standard
Sub Brand:
Pin and Sleeve Devices
Tc Connection:
Pressure Plate
Type:
Watertight
Voltage:
380 Volt
Wattage:
14080 Watt
Widths:
7.9 in
Wire Size:
12-8 AWG
SoneparProductId:
SKU_US_30101122
