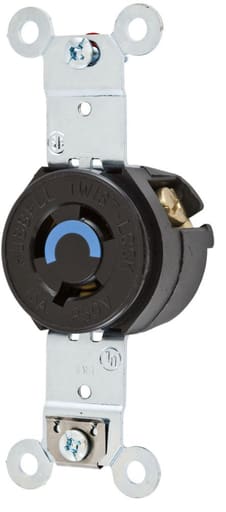

Hubbell Wiring Device - Hubbell HBL4560 15 Amp 250 Volt 2-Pole 3-Wire L6-15R Black Nylon Single Locking Receptacle

CopyCopy
Hubbell Wiring Device - Hubbell HBL4560 15 Amp 250 Volt 2-Pole 3-Wire L6-15R Black Nylon Single Locking Receptacle

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585236605

  • Amperage - 15 Amp

  • Applications - Heavy Duty Industrial

  • Catalog Number - HBL4560

  • Color - Black

Packaging

  • 1 ea

EAN

00783585236605

Part #

217465

Catalog #

HBL4560

Commercial reference

HBL4560

12-Digit UPC:

783585236605

Amperage:

15 Amp

Applications:

Heavy Duty Industrial

Catalog Number:

HBL4560

Color:

Black

Conductor Size:

14-12 AWG

Country of Origin:

USA

Current:

15 Amp

ERP_productname:

HUB HBL4560 GRD LKG RCPT NML6-15R

Family Brand Name:

Hubbell Wiring Device-Kellems

Grade:

Industrial

Heights:

1.27 Inch

Horsepower:

1.5 hp

Length:

3.28 Inch

Material:

Thermoplastic

Mounting Type:

Screw, Recessed/Flush

NEMA:

L6-15R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire Grounding

Size:

Standard

Sub Brand:

Twist-Lock®

Tc Connection:

Screw Terminal

Type:

Heavy Duty

Voltage:

250 Volt

Wattage:

3750 Watt

Widths:

1.790 in

Wire Size:

18-10 AWG

SoneparProductId:

SKU_US_25450534

Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 15A 250V, 2-Pole 3-Wire Grounding, NEMA L6-15R, Screw Terminal, Black. Additional Information: Wire Size 18 to 10 AWG (Solid/stranded Copper); Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596 - Features: Reinforced Thermoplastic Construction; High Impact and Heat Resistance Provides Maximum Safety and Longer Life; Single Point Break-Off Tabs; High Performance Internal Wiring Clamps and Open Terminal Design Provide for the Use of Forked Terminals; Mounting Strap Tabs Lock the Body and Base Together; Brass Mounting Strap with Stainless Steel Grounding Clip; 1-Piece, All Brass Contacts; All Terminals are Back and Side Wired Including the Ground
