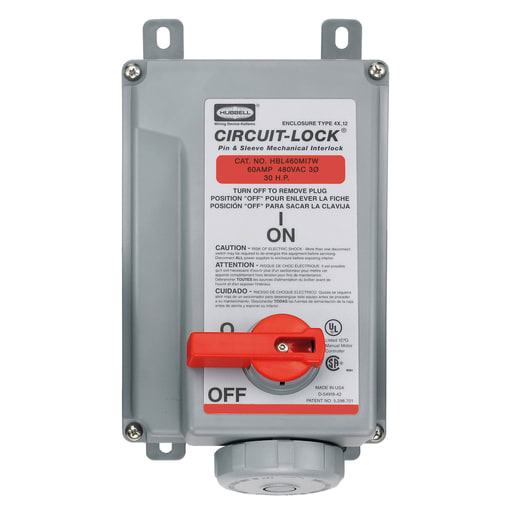

Hubbell Wiring Device - Hubbell HBL460MI7W Pin & Sleeve IEC Unfused Circuit-Lock® Mechanical Interlock, 60A 3P4W, 3ø 480V, IP67, NEMA 4X, 12
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585406053
Amperage - 60 Amp
Applications - High Ampacity Watertight Connections
Catalog Number - HBL460MI7W
Color - Red
Packaging
1 ea
EAN
00783585406053
Part #
217485
Catalog #
HBL460MI7W
Commercial reference
HBL460MI7W
12-Digit UPC:
783585406053
Amperage:
60 Amp
Applications:
High Ampacity Watertight Connections
Catalog Number:
HBL460MI7W
Color:
Red
Conductor Size:
8-2 AWG
Country of Origin:
USA
Current:
60 Amp
ERP_productname:
HUB HBL460MI7W RCPT-3P4W60A480V
Family Brand Name:
Hubbell Wiring Device-Kellems
Heights:
7.2 Inch
Length:
14.9 Inch
Material:
Thermoplastic
Mounting Type:
Screw
Number of Phases:
3 Phase
Number of Poles:
3 Pole
Number of Wires:
4 Wire
Size:
Standard Sized
Sub Brand:
Pin and Sleeve Devices
Tc Connection:
Pressure Plate
Type:
Mechanically Interlocked, Single
Voltage:
480 Volt
Wattage:
28800 Watt
Widths:
8.800 in
Wire Size:
8-2 AWG
SoneparProductId:
SKU_US_25435956
