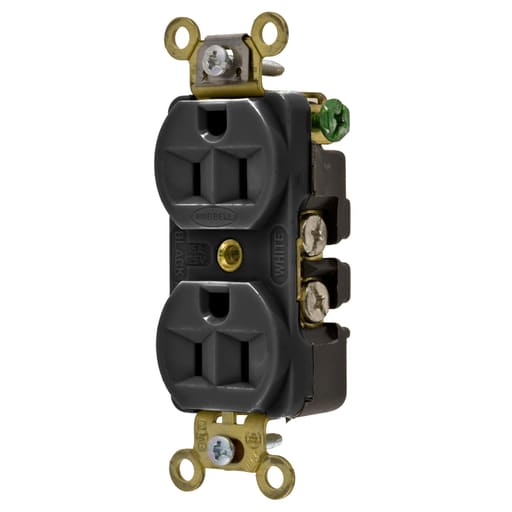

Hubbell Wiring Device - Hubbell HBL5252BK 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Black Straight Blade Duplex Receptacle

CopyCopy
Hubbell Wiring Device - Hubbell HBL5252BK 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Black Straight Blade Duplex Receptacle

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585434865

  • Amperage - 15 Amp

  • Applications - Extra Heavy Duty Compact

  • Catalog Number - HBL5252BK

  • Color - Black

Packaging

  • 1 ea

EAN

00783585434865

Part #

216452

Catalog #

HBL5252BK

Commercial reference

HBL5252BK

12-Digit UPC:

783585434865

Amperage:

15 Amp

Applications:

Extra Heavy Duty Compact

Catalog Number:

HBL5252BK

Color:

Black

Conductor Size:

14-12 AWG

Country of Origin:

USA

Current:

15 Amp

ERP_productname:

HUB HBL5252BK DUP RCPT, IND GRD, 15A 125V, 5-15R, BK

Family Brand Name:

Hubbell Wiring Device-Kellems

Grade:

Industrial

Heights:

1.05 Inch

Horsepower:

0.5 hp

Length:

3.28 Inch

Material:

Thermoplastic

Mounting Type:

Screw

NEMA:

5-15R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire Grounding

Size:

Standard

Sub Brand:

Straight Blade

Tc Connection:

Back and Side Wired

Type:

Extra Heavy Duty, Compact

Voltage:

125 Volt

Wattage:

1875 Watt

Widths:

1.33 in

Wire Size:

14-10 AWG

SoneparProductId:

SKU_US_25221711

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Black, Single Pack Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current; Electrical - Dielectric Voltage - Withstands 2,000V minimum; Environmental - Flammability - UL 94 V-0; Environmental - Operating Temperatures - Maximum continuous 75±C, minimum -40±C (w/o impact); Mechanical - Product Identification - Ratings are a permanent part of the device; Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only; Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA - Industry Standard(s): Certified to CSA 22.2, No. 42 File 285; Fed. Spec. W-C596G; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186 - Features: Slender/compact design; Brass Mounting Strap; Triple wipe contacts
