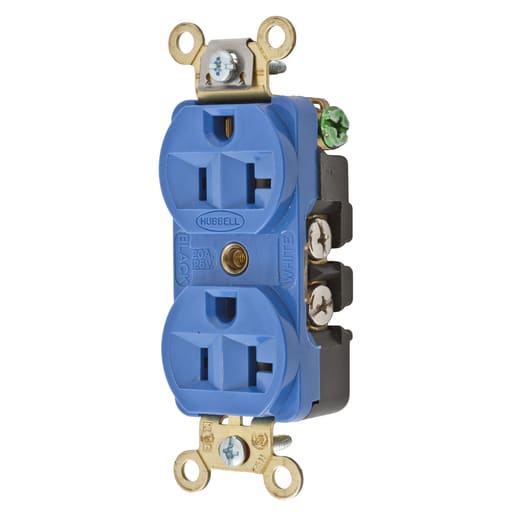

Hubbell Wiring Device - Hubbell HBL5352BLDUP Receptacle, IND GRD, 20A 125V, 5-20R, BL

CopyCopy
Hubbell Wiring Device - Hubbell HBL5352BLDUP Receptacle, IND GRD, 20A 125V, 5-20R, BL

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585434988

  • Amperage - 20 Amp

  • Applications - Extra Heavy Duty Compact

  • Catalog Number - HBL5352BL

  • Color - Blue

Packaging

  • 1 ea

EAN

00783585434988

Part #

224796

Catalog #

HBL5352BL

Commercial reference

HBL5352BL

12-Digit UPC:

783585434988

Amperage:

20 Amp

Applications:

Extra Heavy Duty Compact

Catalog Number:

HBL5352BL

Color:

Blue

Conductor Size:

14-12 AWG

Country of Origin:

USA

Current:

20 Amp

ERP_productname:

HUB HBL5352BL DUP RCPT, IND GRD, 20A 125V, 5-20R, BL

Family Brand Name:

Hubbell Wiring Device-Kellems

Heights:

1.05 Inch

Horsepower:

1 hp

Length:

3.28 Inch

Material:

Nylon

Mounting Type:

Screw, Recessed/Flush

NEMA:

5-20R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

Standard Sized

Sub Brand:

Straight Blade

Tc Connection:

Back and Side Wired Terminal Screws

Type:

Traditional, Extra Heavy Duty

Voltage:

125 Volt

Wattage:

2500 Watt

Widths:

1.33 in

Wire Size:

12-10 V

SoneparProductId:

SKU_US_31890519

Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Blue, Single Pack. Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current; Electrical - Dielectric Voltage - Withstands 2,000V minimum; Environmental - Flammability - UL 94 V-0; Environmental - Operating Temperatures - Maximum continuous 75±C, minimum -40±C (w/o impact); Mechanical - Product Identification - Ratings are a permanent part of the device; Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only; Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA - Industry Standard(s): Certified to CSA 22.2, No. 42 File 285; Fed. Spec. W-C596G; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186 - Features: Slender/compact design; Brass Mounting Strap; Triple wipe contacts
