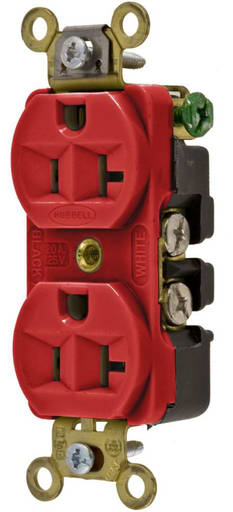

Hubbell Wiring Device - Hubbell HBL5352R 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Red Straight Blade Duplex Receptacle

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585435060

  • Amperage - 20 Amp

  • Applications - Extra Heavy Duty Compact

  • Catalog Number - HBL5352R

  • Color - Red

Packaging

  • 1 ea

EAN

00783585435060

Part #

180674

Catalog #

HBL5352R

Commercial reference

HBL5352R

12-Digit UPC:

783585435060

Amperage:

20 Amp

Applications:

Extra Heavy Duty Compact

Catalog Number:

HBL5352R

Color:

Red

Conductor Size:

14-12 AWG

Country of Origin:

USA

Current:

20 Amp

ERP_productname:

HUB HBL5352R DPLX RCPT NEMA5-20R

Family Brand Name:

Hubbell Wiring Device-Kellems

Grade:

Industrial

Heights:

1.05 Inch

Horsepower:

1 hp

Length:

3.28 Inch

Material:

Thermoplastic

Mounting Type:

Screw

NEMA:

5-20R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire Grounding

Size:

Standard

Sub Brand:

Straight Blade

Tc Connection:

Back and Side Wired Terminal Screws

Type:

Extra Heavy Duty, Compact

Voltage:

125 Volt

Wattage:

2000 Watt

Widths:

1.33 in

Wire Size:

12-10 AWG

SoneparProductId:

SKU_US_25459458

Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Red, Single Pack. Features: 1-Piece Brass Integral Ground Strap for Low Resistance of Fault Currents; Ground Retention Clips for Longer, More Consistent Contact Pressure; Exclusive Bypass Contact Design Results in Greater Contact Force and Reduced Heat Buildup; ID Marking Surface Provides Quick, Sure Circuit Identification; Barbed Assembly Arms Reduce Possibility of Face/Base Separation; RTP Base Offers Greater Heat Resistance, Plus Contact Stability; External Bundling Terminals Contain Wire Strands and are Designed for Quick Inspection; Deep Nylon Body Design Delivers Increased Impact Resistance - Additional Information: Contact/Strap Material Brass; Operating Temperature -40 to 75 Deg C
