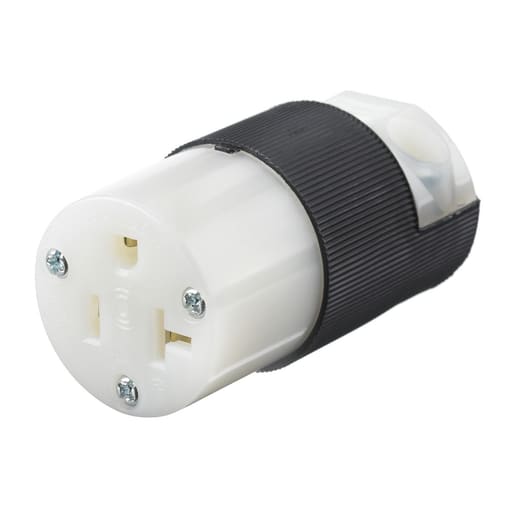

Hubbell Wiring Device - Hubbell HBL5369-C 20A 125V INSULGRIP Black Nylon Connector Body

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585174259

  • Amperage - 20 Amp

  • Applications - Industrial/Commercial

  • Catalog Number - HBL5369C

  • Color - Black and White

Packaging

  • 1 ea

EAN

00783585174259

Part #

217959

Catalog #

HBL5369C

Commercial reference

HBL5369C

12-Digit UPC:

783585174259

Amperage:

20 Amp

Applications:

Industrial/Commercial

Catalog Number:

HBL5369C

Color:

Black and White

Conductor Size:

14-12 AWG

Country of Origin:

USA

Current:

20 Amp

ERP_productname:

HUB HBL5369C CONN-NEMA5-20R

Family Brand Name:

Hubbell Wiring Device-Kellems

Heights:

1.53 Inch

Horsepower:

1 hp

Length:

2.78 Inch

Material:

Composite

NEMA:

5-20R

Number of Conductors:

3

Number of Phases:

1 Phase

Number of Poles:

2-2 Pole

Number of Ports:

2

Number of Wires:

3 Wire

Size:

Standard

Sub Brand:

Insulgrip®

Tc Connection:

Screw Terminals

Type:

Standard

Voltage:

125 Volt

Widths:

1.41 in

Wire Size:

18-10 AWG

SoneparProductId:

SKU_US_25353089

Straight Blade Devices, Female Connector Body, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2- Pole 3-Wire Grounding, 20A 125V, 5-20R, Black and White, Single Pack. Features: Individual wiring terminals completely enclosed; Powerful, offsetting cord grips clamp on individual conductors; Fast lead assembly screws; Beveled housing prevents snagging
