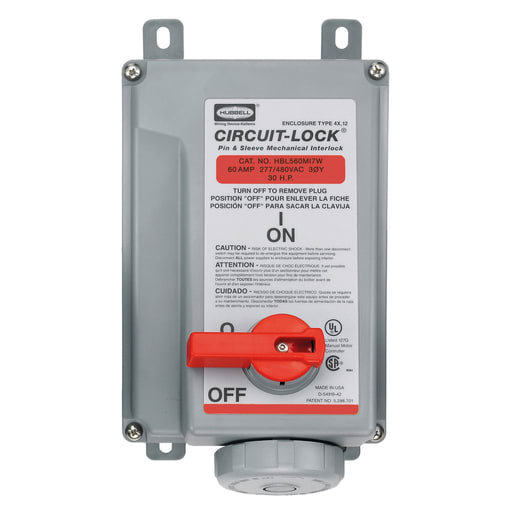

Hubbell Wiring Device - Hubbell HBL560MI7W Pin & Sleeve IEC Unfused Circuit-Lock® Mechanical Interlock, 60A 4P5W, 3øY 277/480V, IP67, NEMA 4X, 12
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585406169
Amperage - 60 Amp
Applications - High Ampacity Watertight Connections
Catalog Number - HBL560MI7W
Color - Red
Packaging
1 ea
EAN
00783585406169
Part #
494908
Catalog #
HBL560MI7W
Commercial reference
HBL560MI7W
12-Digit UPC:
783585406169
Amperage:
60 Amp
Applications:
High Ampacity Watertight Connections
Catalog Number:
HBL560MI7W
Color:
Red
Conductor Size:
8-2 AWG
Country of Origin:
Puerto Rico
Current:
60 Amp
ERP_productname:
HUB HBL560MI7W PS, IEC, MECHINT, 4P5W, 60A 277/480V,W/T
Family Brand Name:
Hubbell Incorporated
Heights:
7.3 Inch
Length:
14.7 Inch
Material:
Thermoplastic
Number of Phases:
3 Phase
Number of Poles:
4-4 Pole
Number of Wires:
5,5
Size:
Standard Sized
Sub Brand:
Pin and Sleeve Devices
Tc Connection:
Pressure Screw Terminals
Type:
Mechanically Interlocked Single
Voltage:
277/480 Volt
Wattage:
28800 Watt
Widths:
8.700 in
Wire Size:
8-2 AWG
SoneparProductId:
SKU_US_29087541
