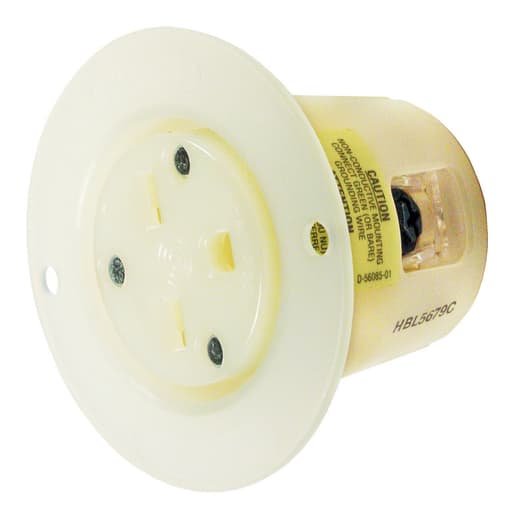

Hubbell Wiring Device - Hubbell HBL5679CFlanged-Receptacle, 15A 250V, 6-15P, WH

12-Digit UPC:

783585176000

Amperage:

15 Amp

Applications:

For Heavy Duty Applications

Catalog Number:

HBL5679C

Color:

White

Conductor Size:

14-12 AWG

Country of Origin:

USA

Current:

15 Amp

ERP_productname:

HUB HBL5679C FLG-RCPT, 15A 250V, 6-15P, WH

Family Brand Name:

Hubbell Wiring Device-Kellems

Heights:

2.56 Inch

Horsepower:

1.5 hp

Length:

1.72 Inch

Material:

Thermoplastic

Mounting Type:

Screw

NEMA:

6-15R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

Standard

Sub Brand:

Straight Blade

Tc Connection:

Screw Terminals

Type:

Standard

Voltage:

250 Volt

Wattage:

3750 Watt

Widths:

2.56 in

Wire Size:

18-10 AWG

SoneparProductId:

SKU_US_30650507
