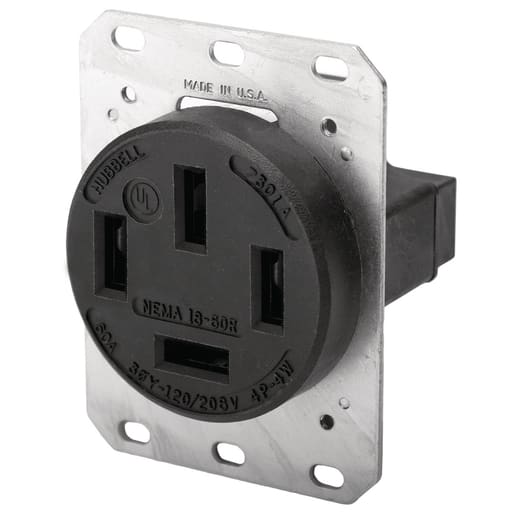

Hubbell Wiring Device - Hubbell HBL7301A 60 Amp 3-Phase 120/208 VAC 4-Pole 4-Wire NEMA 18-60R Black Straight Blade Receptacle
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585015095
Amperage - 60 Amp
Applications - Heavy Duty
Catalog Number - HBL7301A
Color - Black
Packaging
1 ea
EAN
00783585015095
Part #
218451
Catalog #
HBL7301A
Commercial reference
HBL7301A
12-Digit UPC:
783585015095
Amperage:
60 Amp
Applications:
Heavy Duty
Catalog Number:
HBL7301A
Color:
Black
Conductor Size:
12-6 AWG
Country of Origin:
USA
Current:
60 Amp
ERP_productname:
HUB HBL7301A RCPT NEMA18-60R
Family Brand Name:
Hubbell Wiring Device-Kellems
Heights:
2.678 Inch
Horsepower:
7.5 hp
Length:
3.28 Inch
Material:
Thermoplastic
Mounting Type:
Screw, Recessed/Flush
NEMA:
18-60R
Number of Phases:
3 Phase
Number of Poles:
4 Pole
Number of Wires:
4 Wire
Size:
Standard Sized
Sub Brand:
Straight Blade and Twist-Lock
Tc Connection:
Back & Side Wired
Type:
Heavy Duty
Voltage:
120 Volt
Wattage:
12480 Watt
Widths:
1.81 in
Wire Size:
12-4 AWG
SoneparProductId:
SKU_US_26616202
