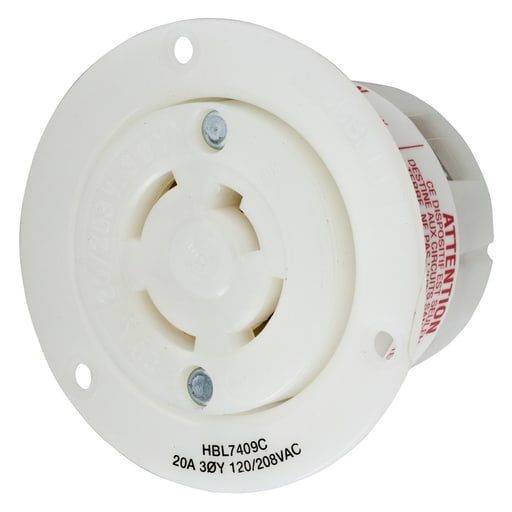

Hubbell Wiring Device - Hubbell HBL7409C Locking Flanged-Receptacle, 4P4W, 20A 120/208V, WH
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585037554
Amperage - 20 Amp
Applications - Insulgrip
Catalog Number - HBL7409C
Color - White
Packaging
1 ea
EAN
00783585037554
Part #
269903
Catalog #
HBL7409C
Commercial reference
HBL7409C
12-Digit UPC:
783585037554
Amperage:
20 Amp
Applications:
Insulgrip
Catalog Number:
HBL7409C
Color:
White
Conductor Size:
16-8 AWG
Country of Origin:
USA
Current:
20 Amp
ERP_productname:
HUB HBL7409C LKG FLG-RCPT, 4P4W, 20A 120/208V, WH
Family Brand Name:
Hubbell Incorporated
Heights:
2.4 Inch
Length:
3.06 Inch
Material:
Nylon
Number of Phases:
3 Phase
Number of Poles:
4-4 Pole
Number of Wires:
4,4
Size:
Standard Sized
Sub Brand:
Twist-Lock
Tc Connection:
Screw Terminal
Type:
Single
Voltage:
120/208 Volt
Wattage:
4160 Watt
Widths:
3.06 in
Wire Size:
16-8 AWG
SoneparProductId:
SKU_US_29777020
