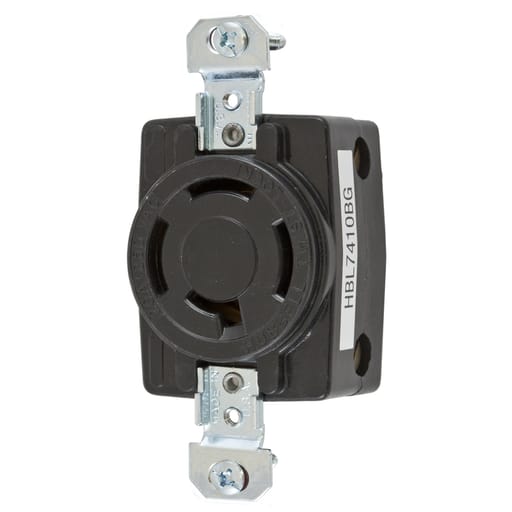

Hubbell Wiring Device - Hubbell HBL7410BG 20 Amp 250 VAC 3-Pole 4-Wire Non-NEMA Black Nylon Single Flush Receptacle

CopyCopy
Hubbell Wiring Device - Hubbell HBL7410BG 20 Amp 250 VAC 3-Pole 4-Wire Non-NEMA Black Nylon Single Flush Receptacle

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585333540

  • Amperage - 20 Amp

  • Applications - Heavy Duty Industrial

  • Catalog Number - HBL7410BG

  • Color - Black

Packaging

  • 1 ea

EAN

00783585333540

Part #

218612

Catalog #

HBL7410BG

Commercial reference

HBL7410BG

12-Digit UPC:

783585333540

Amperage:

20 Amp

Applications:

Heavy Duty Industrial

Catalog Number:

HBL7410BG

Color:

Black

Conductor Size:

16-8 AWG

Country of Origin:

USA

Current:

20 Amp

ERP_productname:

HUB HBL7410BG 4W20A250V LKG RCPT

Family Brand Name:

Hubbell Incorporated

Heights:

1.28 Inch

Length:

3.61 Inch

Material:

Nylon

Number of Phases:

3 Phase

Number of Poles:

3-3 Pole

Number of Wires:

4,4

Size:

Standard Sized

Sub Brand:

Twist-Lock

Tc Connection:

Screw Terminal

Type:

Single

Voltage:

250 Volt

Wattage:

5000 Watt

Widths:

1.71 in

Wire Size:

16-8 AWG

SoneparProductId:

SKU_US_27167897

Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 20A 3-Phase 250V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Back wired, Black Thermoset. Features: High-impact, abuse-resistant nylon face; Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection; Face color coding by voltage facilitates locating and mating of proper devices; All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems; Standard
