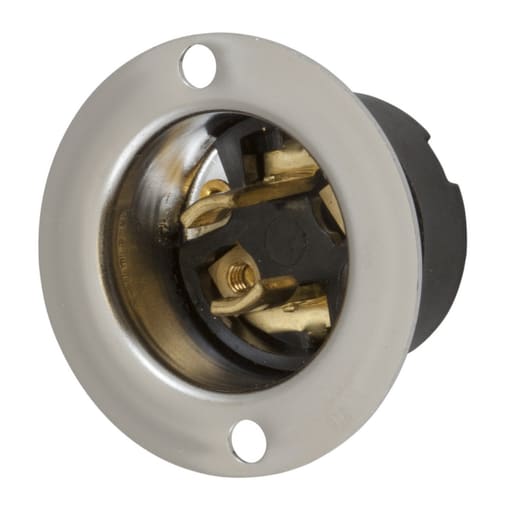

Hubbell Wiring Device - Hubbell HBL7466 Locking Flanged-INLET, MIDGET, 15A 125V, ML-1P
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585237312
Amperage - 15 Amp
Applications - Heavy duty, high leverage diagonal cutter
Catalog Number - HBL7466
Color - Black
Packaging
1 ea
EAN
00783585237312
Part #
301655
Catalog #
HBL7466
Commercial reference
HBL7466
12-Digit UPC:
783585237312
Amperage:
15 Amp
Applications:
Heavy duty, high leverage diagonal cutter
Catalog Number:
HBL7466
Color:
Black
Conductor Size:
18-14 AWG
Country of Origin:
USA
Current:
15 Amp
ERP_productname:
HUB HBL7466 LKG FLG-INLET,MIDGET,15A 125V,ML-1P,POL
Family Brand Name:
Hubbell Incorporated
Heights:
0.94 Inch
Length:
1.63 Inch
Material:
Nylon
NEMA:

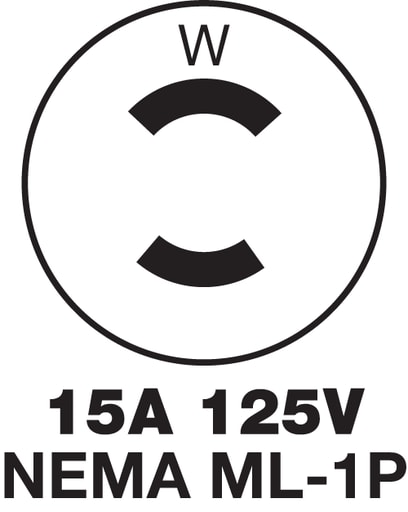

ML-1P
Number of Phases:
1 Phase
Number of Poles:
2-2 Pole
Number of Wires:
2,2
Size:

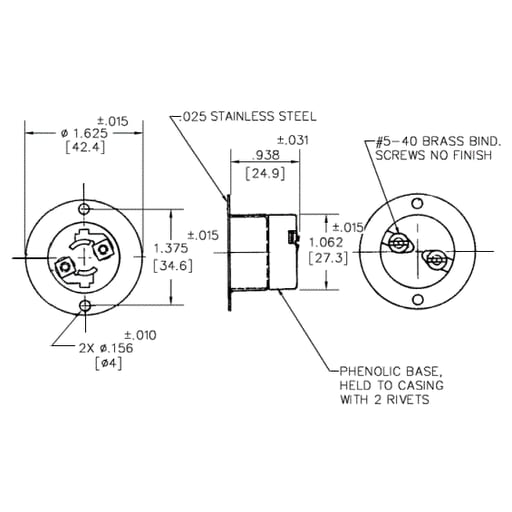

1.63 in x 1.63 in x 0.94 in
Sub Brand:
Twist-Lock Devices
Tc Connection:
Screw, 6 Terminals
Type:
Standard, Single
Voltage:
125 Volt
Wattage:
1875 Watt
Widths:
1.63 in
Wire Size:
18-14
SoneparProductId:
SKU_US_29987664
