Hubbell Wiring Device - Hubbell HBL7498 Locking SGL SHRT STRP Receptacle, 15A 125V, L1-15R

CopyCopy
Hubbell Wiring Device - Hubbell HBL7498 Locking SGL SHRT STRP Receptacle, 15A 125V, L1-15R

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585237534

  • Amperage - 15 Amp

  • Applications - Heavy Duty Industrial

  • Catalog Number - HBL7498

  • Color - Black

Packaging

  • 1 ea

EAN

00783585237534

Part #

401226

Catalog #

HBL7498

Commercial reference

HBL7498

12-Digit UPC:

783585237534

Amperage:

15 Amp

Applications:

Heavy Duty Industrial

Catalog Number:

HBL7498

Color:

Black

Conductor Size:

14 AWG

Country of Origin:

USA

Current:

15 Amp

ERP_productname:

HUB HBL7498 LKG SGL SHRT STRP RCPT,15A 125V,L1-15R

Family Brand Name:

Hubbell Wiring Device-Kellems

Grade:

Industrial

Heights:

1.14 Inch

Horsepower:

0.5 hp

Length:

2.34 Inch

Material:

Thermoplastic

Mounting Type:

Screw, Recessed/Flush, Panel

NEMA:

L1-15R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

2 Wire

Size:

2.34 in x 1.39 in x 1.14 in

Sub Brand:

Twist-Lock®

Tc Connection:

Screw Terminals

Type:

Heavy Duty

Voltage:

125 Volt

Wattage:

1875 Watt

Widths:

1.39 in

Wire Size:

18-12 AWG

SoneparProductId:

SKU_US_29342534

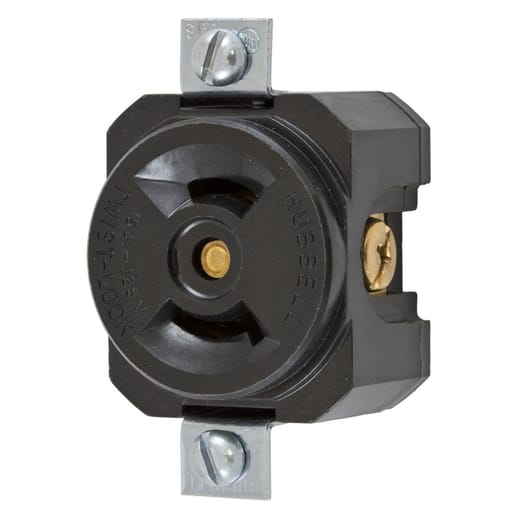

Locking Devices, Twist-Lock®, Industrial, Panel Mount Single Receptacle, 15A 125V, 2-Pole 2-Wire Non Grounding, NEMA L1-15R, Screw Terminal, Black, 1 and 15/16" Mounting Dimension. Features: Thermoset construction offers high heat resistance; High performance copper alloy contacts; Corrosion resistant zinc plated steel one-piece mounting strap; Panel Mount
