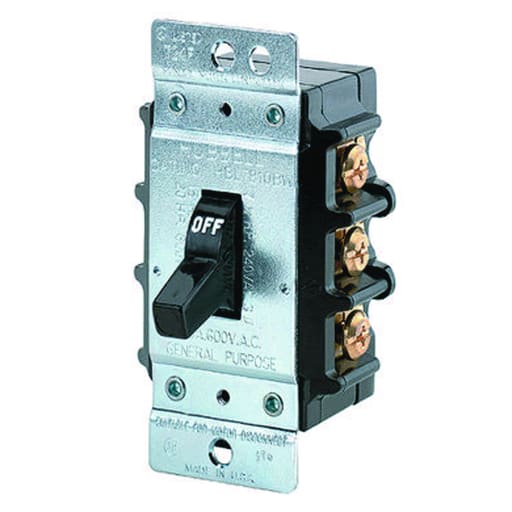

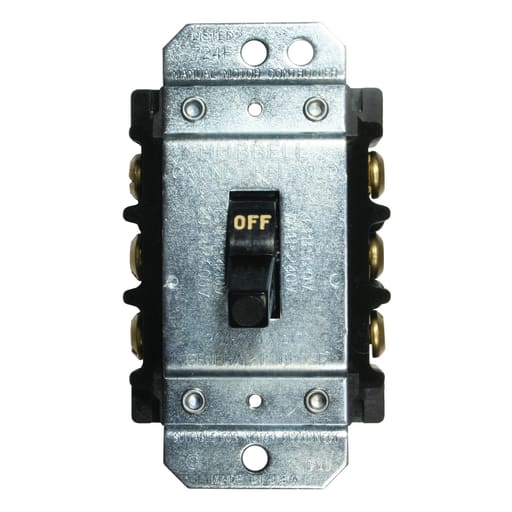

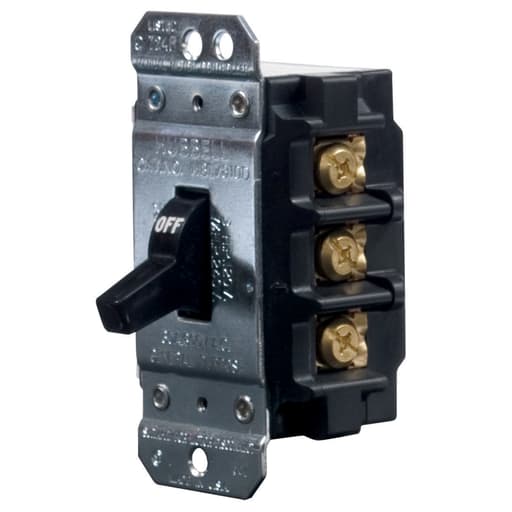

Hubbell Wiring Device - Hubbell HBL7810D 30A 600V Circuit-Lock Manual Motor Controller

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585202792

  • Amperage - 30 Amp

  • Applications - For Motor Starting Without Overload Protection

  • Catalog Number - HBL7810D

  • Color - Black

Packaging

  • 1 ea

EAN

00783585202792

Part #

218882

Catalog #

HBL7810D

Commercial reference

HBL7810D

12-Digit UPC:

783585202792

Amperage:

30 Amp

Applications:

For Motor Starting Without Overload Protection

Catalog Number:

HBL7810D

Color:

Black

Country of Origin:

USA

Current:

30 Amp

ERP_productname:

HUB HBL7810D 3P 30A 600V BLK SW

Enclosure Type:

None

Family Brand Name:

Hubbell Wiring Device-Kellems

Heights:

2.418 Inch

Horsepower:

20 hp

Length:

3.978 Inch

Material:

Stainless Steel

Mounting Type:

Screw

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Size:

Standard Sized Product

Sub Brand:

Manual Motor Controllers

Tc Connection:

Pressure Screw Terminals

Type:

Standard, Open, Toggle

Voltage:

600 Volt

Wattage:

18000 Watt

Widths:

2.418 in

SoneparProductId:

SKU_US_25364620

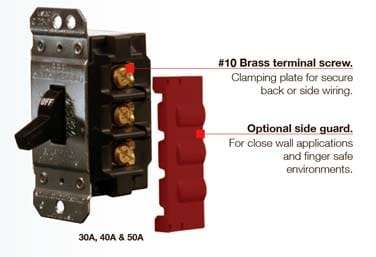

Switches and Lighting Controls, Industrial Grade, Manual Motor Controllers, Motor Disconnects, Three Pole, 30A 600V AC, Back and Side Wired, Black Features: Optional Side Guard for close wall applications; Clamping plate for secure back or side wiring; Thermoset body provides resistance to electrical arc tracking; Thermoset body provides high resistance to electrical arc tracking; Strong ON/OFF action with quick-make, slow break operation; Optional Side Finger Guards for close wall applications and finger safe environments; Four large silver alloy contacts per pole has excellent conductivity with maximum M4969 longevity; Lubrication-free controller with continued ON/OFF cycling even in harsh, dust and high heat environments; Standard Product
