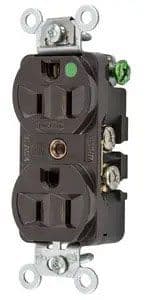

Hubbell Wiring Device - Hubbell HBL8200HDUP Receptacle, COM/HG, 15A 125V, 5-15R, BR

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585015828

  • Amperage - 15 Amp

  • Applications - Slender/Compact Hospital Grade

  • Catalog Number - HBL8200H

  • Color - Brown

Packaging

  • 1 ea

EAN

00783585015828

Part #

199453

Catalog #

HBL8200H

Commercial reference

HBL8200H

12-Digit UPC:

783585015828

Amperage:

15 Amp

Applications:

Slender/Compact Hospital Grade

Catalog Number:

HBL8200H

Color:

Brown

Conductor Size:

14-12 AWG

Country of Origin:

Puerto Rico

Current:

15 Amp

ERP_productname:

HUB HBL8200H DUP RCPT, COM/HG, 15A 125V, 5-15R, BR

Family Brand Name:

Hubbell Wiring Device-Kellems

Grade:

Hospital

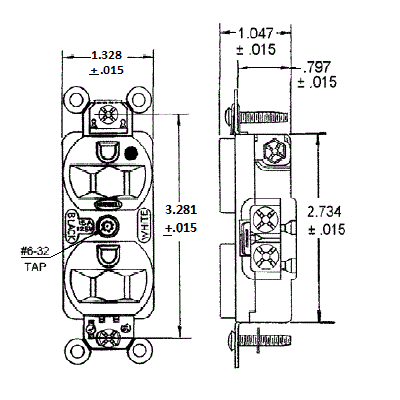

Heights:

1.05 Inch

Horsepower:

0.5 hp

Length:

3.28 Inch

Material:

Nylon

Mounting Type:

Screw, Flush

NEMA:

5-15R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

Slender/Compact

Sub Brand:

Straight Blade

Tc Connection:

Back and Side Wired Terminal Screws

Type:

Receptacle

Voltage:

125 Volt

Wattage:

1875 Watt

Widths:

1.33 in

Wire Size:

14-10

SoneparProductId:

SKU_US_25218733

Straight Blade Devices, Receptacles, Duplex, Compact Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5- 15R, Brown, Single Pack. Features: 1-Piece Brass Integral Ground Strap for Low Resistance of Fault Currents; Ground Retention Clips for Longer, More Consistent Contact Pressure; Exclusive Bypass Contact Design Results in Greater Contact Force and Reduced Heat Buildup; ID Marking Surface Provides Quick, Sure Circuit Identification; Barbed Assembly Arms Reduce Possibility of Face/Base Separation; RTP Base Offers Greater Heat Resistance, Plus Contact Stability; External Bundling Terminals Contain Wire Strands and are Designed for Quick Inspection; Deep Nylon Body Design Delivers Increased Impact Resistance - Additional Information: Contact Material Brass; Strap Material Galvanized Steel; Operating Temperature -40 to 75 Deg C
