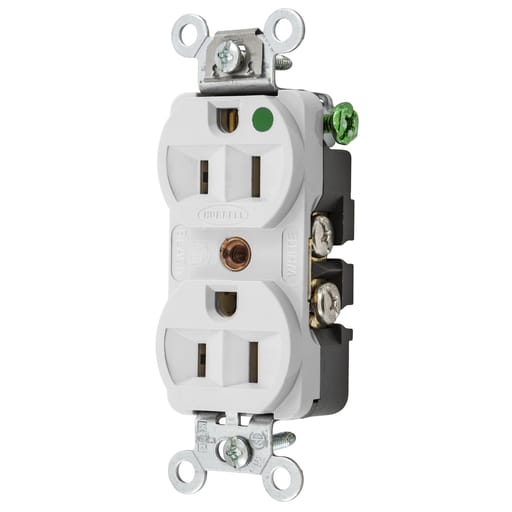

Hubbell Wiring Device - Hubbell HBL8200HWDUP Receptacle, COM/HG, 15A 125V, 5-15R, WH

CopyCopy
Hubbell Wiring Device - Hubbell HBL8200HWDUP Receptacle, COM/HG, 15A 125V, 5-15R, WH

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585016207

  • Amperage - 15 Amp

  • Applications - Slender/Compact Hospital Grade

  • Catalog Number - HBL8200HW

  • Color - White

Packaging

  • 1 ea

EAN

00783585016207

Part #

199466

Catalog #

HBL8200HW

Commercial reference

HBL8200HW

12-Digit UPC:

783585016207

Amperage:

15 Amp

Applications:

Slender/Compact Hospital Grade

Catalog Number:

HBL8200HW

Color:

White

Conductor Size:

14-12 AWG

Country of Origin:

USA

Current:

15 Amp

ERP_productname:

HUB HBL8200HW DUP RCPT, COM/HG, 15A 125V, 5-15R, WH

Family Brand Name:

Hubbell Wiring Device-Kellems

Finish:

Matte

Grade:

Compact Hospital

Heights:

1.05 Inch

Horsepower:

0.5 hp

Length:

3.28 Inch

Material:

Thermoplastic

Mounting Type:

Screw, Flush

NEMA:

5-15R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire Grounding

Size:

Slender/Compact

Sub Brand:

Straight Blade

Tc Connection:

Back & Side Wired

Type:

Receptacle

Voltage:

125 Volt

Wattage:

1875 Watt

Widths:

1.33 in

Wire Size:

14-10 A

SoneparProductId:

SKU_US_25219132

Straight Blade Devices, Receptacles, Duplex, Compact Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5- 15R, White, Bulk Packed. Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current; Electrical - Dielectric Voltage - Withstands 2,000V minimum; Environmental - Flammability - UL 94 V-0; Environmental - Operating Temperatures - Maximum continuous 75±C, minimum -40±C (w/o impact); Mechanical - Product Identification - Ratings are a permanent part of the device; Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only; Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA - Features: Slender/compact design; Impact-resistant finder groove face; Triple wipe contacts - Industry Standard(s): CSA Certified, C22.2, No. 42 File 285; Fed. Spec. W-C-596; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186
