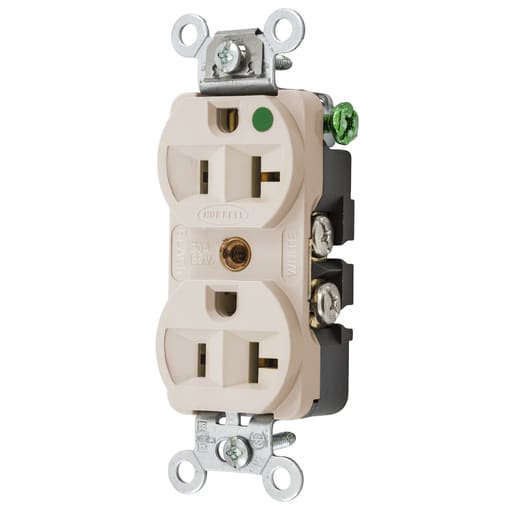

Hubbell Wiring Device - Hubbell HBL8300HLADUP Receptacle, COM/HG, 20A 125V, 5-20R, LA

Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585147260
Amperage - 20 Amp
Applications - Slender/Compact Hospital Grade
Catalog Number - HBL8300HLA
Color - Light Almond
Packaging
1 ea
EAN
00783585147260
Part #
112480
Catalog #
HBL8300HLA
Commercial reference
HBL8300HLA
12-Digit UPC:
783585147260
Amperage:
20 Amp
Applications:
Slender/Compact Hospital Grade
Catalog Number:
HBL8300HLA
Color:
Light Almond
Conductor Size:
14-12 AWG
Country of Origin:
USA
Current:
20 Amp
ERP_productname:
HUB HBL8300HLA DUP RCPT, COM/HG, 20A 125V, 5-20R, LA
Family Brand Name:
Hubbell Wiring Device-Kellems
Grade:
Hospital

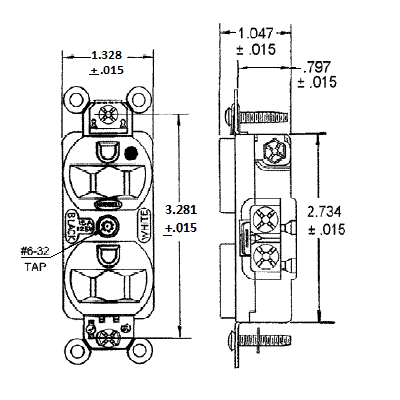

Heights:
1.05 Inch
Horsepower:
1 hp
Length:
3.28 Inch
Material:
Nylon
Mounting Type:
Screw
NEMA:
5-20R
Number of Phases:
1 Phase
Number of Poles:
2 Pole
Number of Wires:
3 Wire
Size:
Slender/Compact
Sub Brand:
Straight Blade
Tc Connection:
Back and Side Wired Terminal Screws
Type:
Traditional
Voltage:
125 Volt
Wattage:
2500 Watt
Widths:
1.33 in
Wire Size:
12-10 AWG
SoneparProductId:
SKU_US_30878022
