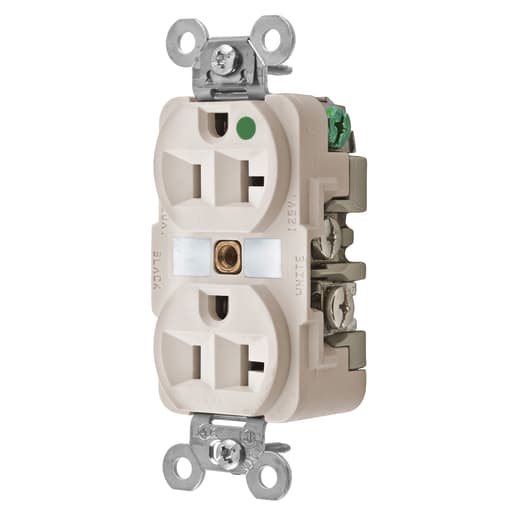

Hubbell Wiring Device - Hubbell HBL8300LADUP Receptacle, HG, 20A 125V, 5-20R, LA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585147284
Amperage - 20 Amp
Applications - Extra Heavy Duty Hospital Grade
Catalog Number - HBL8300LA
Color - Light Almond
Packaging
1 ea
EAN
00783585147284
Part #
219851
Catalog #
HBL8300LA
Commercial reference
HBL8300LA
12-Digit UPC:
783585147284
Amperage:
20 Amp
Applications:
Extra Heavy Duty Hospital Grade
Catalog Number:
HBL8300LA
Color:
Light Almond
Conductor Size:
14-12 AWG
Country of Origin:
USA
Current:
20 Amp
ERP_productname:
HUB HBL8300LA DUP RCPT, HG, 20A 125V, 5-20R, LA
Family Brand Name:
Hubbell Wiring Device-Kellems
Grade:
Hospital
Heights:
1.19 Inch
Horsepower:
1 hp
Length:
3.28 Inch
Material:
Thermoplastic
Mounting Type:
Screw
NEMA:
5-20R
Number of Phases:
1 Phase
Number of Poles:
2 Pole
Number of Wires:
3 Wire
Size:
Standard
Sub Brand:
Straight Blade
Tc Connection:
Back & Side Wired
Type:
Traditional
Voltage:
125 Volt
Wattage:
2500 Watt
Widths:
1.65 in
Wire Size:
12-10 W
SoneparProductId:
SKU_US_29827485
