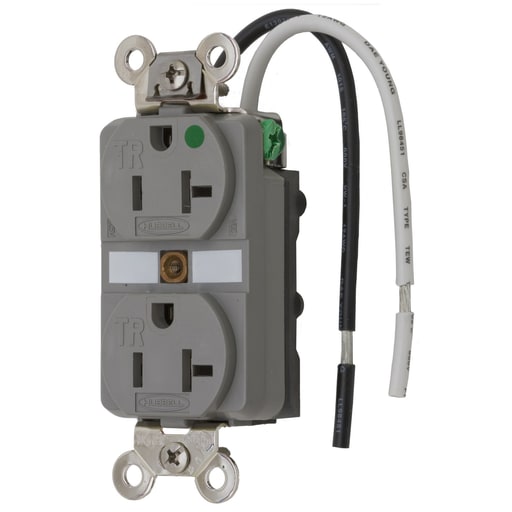

Hubbell Wiring Device - Hubbell HBL8300SGGYA 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Gray Straight Blade Duplex Receptacle
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585152295
Amperage - 20 Amp
Applications - For Heavy Duty Applications
Catalog Number - HBL8300SGGYA
Color - Gray
Packaging
1 ea
EAN
00783585152295
Part #
109799
Catalog #
HBL8300SGGYA
Commercial reference
HBL8300SGGYA
12-Digit UPC:
783585152295
Amperage:
20 Amp
Applications:
For Heavy Duty Applications
Catalog Number:
HBL8300SGGYA
Color:
Gray
Conductor Size:
14-12 AWG
Country of Origin:
China
Current:
20 Amp
ERP_productname:
HUB HBL8300SGGYA DUP RCPT, TAMP-RES, 20A 125V, 5-20R, GY
Family Brand Name:
Hubbell Wiring Device-Kellems
Grade:
Hospital
Heights:
1.27 Inch
Horsepower:
1 hp
Length:
3.29 Inch
Material:
Thermoplastic
Mounting Type:
Screw
NEMA:
5-20R
Number of Phases:
1 Phase
Number of Poles:
2 Pole
Number of Wires:
3 Wire
Size:
Standard
Sub Brand:
Straight Blade
Tc Connection:
Back and Side Wired Terminal Screws
Type:
Traditional, Tamper-Resistant
Voltage:
125 Volt
Wattage:
2500 Watt
Widths:
1.65 in
Wire Size:
12-10 W
SoneparProductId:
SKU_US_25220011
