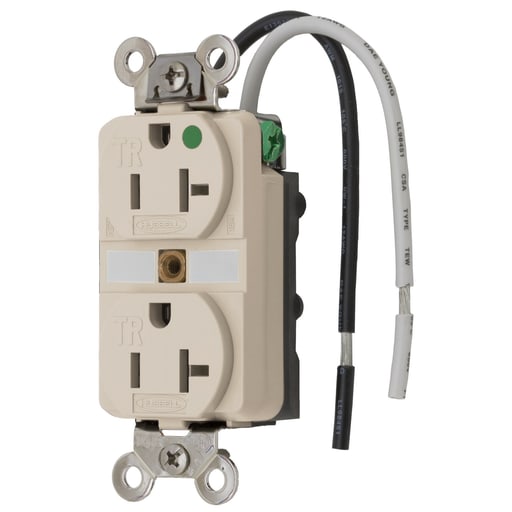

Hubbell Wiring Device - Hubbell HBL8300SGLADUP Receptacle, TAMP-RES, 20A 125V, 5-20R, LA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585127989
Amperage - 20 Amp
Applications - Extra Heavy Duty Hospital Grade
Catalog Number - HBL8300SGLA
Color - Light Almond
Packaging
1 ea
EAN
00783585127989
Part #
215707
Catalog #
HBL8300SGLA
Commercial reference
HBL8300SGLA
12-Digit UPC:
783585127989
Amperage:
20 Amp
Applications:
Extra Heavy Duty Hospital Grade
Catalog Number:
HBL8300SGLA
Color:
Light Almond
Conductor Size:
14-12 AWG
Country of Origin:
China
Current:
20 Amp
ERP_productname:
HUB HBL8300SGLA DUP RCPT, TAMP-RES, 20A 125V, 5-20R, LA
Family Brand Name:
Hubbell Wiring Device-Kellems
Grade:
Hospital
Heights:
1.27 Inch
Horsepower:
1 hp
Length:
3.29 Inch
Material:
Thermoplastic
Mounting Type:
Screw
NEMA:
5-20R
Number of Phases:
1 Phase
Number of Poles:
2 Pole
Number of Wires:
3 Wire
Size:
Standard
Sub Brand:
Straight Blade and Twist-Lock
Tc Connection:
Back & Side Wired
Type:
Traditional, Tamper-Resistant
Voltage:
125 Volt
Wattage:
2500 Watt
Widths:
1.65 in
Wire Size:
12-10 AWG
SoneparProductId:
SKU_US_30060097
