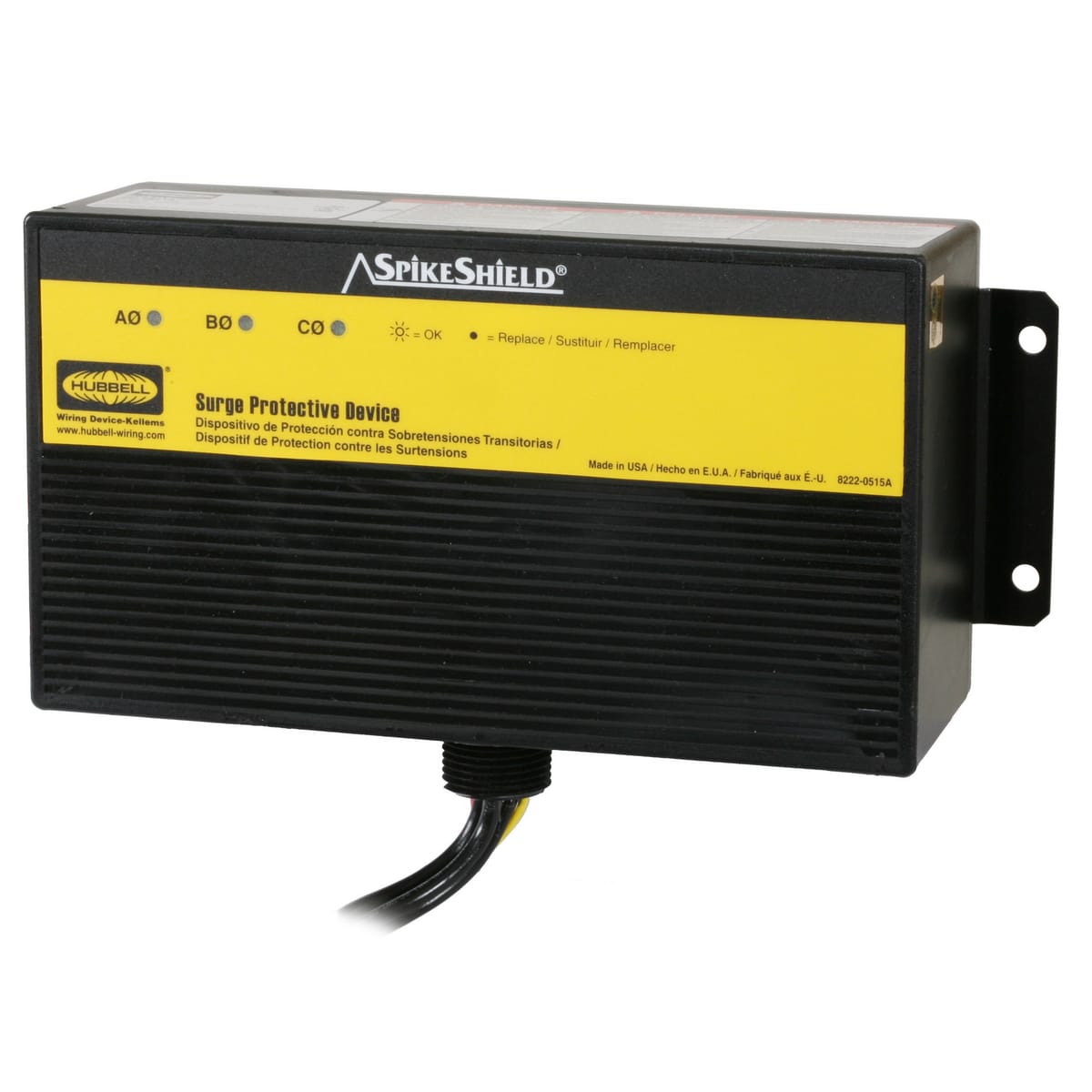

Hubbell Wiring Device - Hubbell HBL8W100C SPD BLOCK, 100KA, 277 480V

Essential specifications

12-Digit UPC - 783585120829
Applications - Surface Mount Brick with Leads
Catalog Number - HBL8W100C
Class - C
Country of Origin - USA

Packaging

1 ea

EAN

00783585120829

Part #

293010

Catalog #

HBL8W100C

Commercial reference

HBL8W100C

12-Digit UPC:

783585120829

Applications:

Surface Mount Brick with Leads

Catalog Number:

HBL8W100C

Class:

Country of Origin:

USA

ERP_productname:

HUB HBL8W100C SPD BLOCK, 100KA, 277 480V

Enclosure Rating:

Enclosure Type:

NEMA 4X

Family Brand Name:

Hubbell Wiring Device-Kellems

Heights:

5.1 Inch

Length:

11.3 Inch

Material:

Steel

Number of Phases:

3 Phase

Size:

100kA Peak

Sub Brand:

SpikeShield®

Tc Connection:

Leads

Type:

Wired-In Branch Panel

Voltage:

277/480 VAC

Widths:

7.700 in

SoneparProductId:

SKU_US_30312117

Surge Protective Devices, SPIKESHIELD Surface Mount Block, 100KA, 3-Phase 277/480V AC Features: Brick design for space consumption; NEMA 4X housing and a 200kA SCCR rating; Dry Contacts, NEMA 4X - Performance: Electrical - Diagnostics - Green Status LED.s, Audible Alarm, Dry Contacts; Electrical - Surge Current per Phase - 100kA; Environmental - Operating Temperature - -40.F to 140.F (-40.C to 60.C); Mechanical - Terminal Accommodation - #10 AWG 18.0\" Wire Leads - Voltage Rating: Wye 277 VAC; Wye 480 VAC
