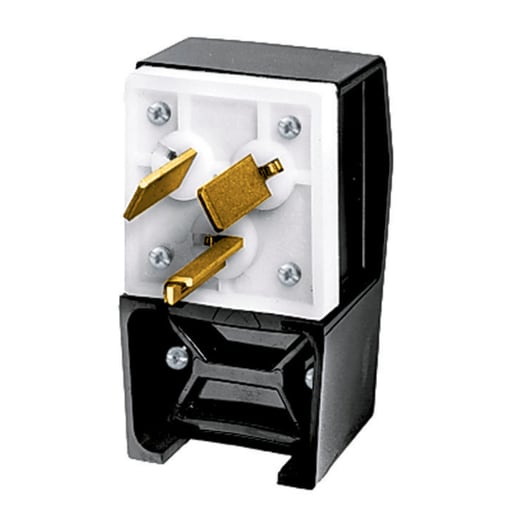

Hubbell Wiring Device - Hubbell HBL9333 30 Amp 125/250 Volt 3-Pole 3-Wire NEMA 10-30P Black/White Nylon Straight Blade Plug

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585015422

  • Amperage - 30 Amp

  • Applications - Industrial and Commercial

  • Catalog Number - HBL9333

  • Color - Black

Packaging

  • 1 ea

EAN

00783585015422

Part #

162709

Catalog #

HBL9333

Commercial reference

HBL9333

12-Digit UPC:

783585015422

Amperage:

30 Amp

Applications:

Industrial and Commercial

Catalog Number:

HBL9333

Color:

Black

Conductor Size:

12-4 AWG

Country of Origin:

USA

Current:

30 Amp

ERP_productname:

HUB HBL9333 PLUG, ANG, 3P3W, 30A 125/250V,10-30P,BK

Family Brand Name:

Hubbell Wiring Device-Kellems

Heights:

1.88 Inch

Length:

4.33 Inch

Material:

Nylon

Mounting Type:

Cord

NEMA:

10-30P

Number of Poles:

3 Pole

Number of Wires:

3 Wire

Size:

4.34 in x 2.75 in x 1.88 in

Sub Brand:

Insulgrip®

Tc Connection:

Terminal Screws

Type:

Standard Sized, Angled, 4-Position

Voltage:

125 Volt

Wattage:

7500 Watt

Widths:

2.75 in

Wire Size:

12-4 AWG

SoneparProductId:

SKU_US_26616424

Straight Blade Devices, Male Plug, Nylon, 4-Position, Heavy Duty, Industrial/Commercial Grade, Angled, 2-Pole 3-Wire Grounding, 30A 125/250V, 10-30P, Black, Single Pack. Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current; Electrical - Dielectric Voltage - Withstands 2,000V minimum; Environmental - Flammability - UL 94 V-2; Environmental - IP Suitability - IP20; Environmental - Operating Temperatures - Maximum continuous 75±C, minimum -40±C (w/o impact); Mechanical - Product Identification - Ratings are a permanent part of the device; Mechanical - Terminal Accommodation - #12-#4 AWG copper stranded or solid conductor only; Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA - Voltage Rating: 125 V; 250 V
