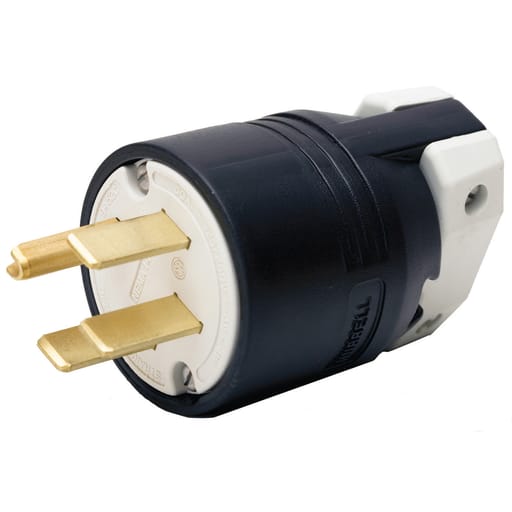

Hubbell Wiring Device - Hubbell HBL9451C 50 Amp 125/250 Volt 3-Pole 4-Wire NEMA 14-50P Black and White Straight Blade Plug

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585015323

  • Amperage - 50 Amp

  • Applications - Industrial/Commercial

  • Catalog Number - HBL9451C

  • Color - Black

Packaging

  • 1 ea

EAN

00783585015323

Part #

219276

Catalog #

HBL9451C

Commercial reference

HBL9451C

12-Digit UPC:

783585015323

Amperage:

50 Amp

Applications:

Industrial/Commercial

Catalog Number:

HBL9451C

Color:

Black

Conductor Size:

12-4 AWG

Country of Origin:

USA

Current:

50 Amp

ERP_productname:

HUB HBL9451C 4W-50A-250V ARMD CAP

Family Brand Name:

Hubbell Wiring Device-Kellems

Heights:

2.88 Inch

Length:

4.13 Inch

Material:

Composite

Mounting Type:

Surface

NEMA:

14-50P

Number of Poles:

3 Pole

Number of Wires:

4 Wire

Size:

Standard Sized

Sub Brand:

Insulgrip®

Tc Connection:

Terminal Screws

Type:

Insulgrip, Standard Sized

Voltage:

125 Volt

Wattage:

12500 Watt

Widths:

2.88 in

Wire Size:

12-4 AWG

SoneparProductId:

SKU_US_25408993

Straight Blade Devices, Male Plug, Nylon, Heavy Duty, Industrial/Commercial Grade, Straight, 3-Pole 4-Wire Grounding, 50A 125/250V, 14-50P, Black, Single Pack. Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current; Electrical - Dielectric Voltage - Withstands 2,000V minimum; Environmental - Flammability - UL 94 HB; Environmental - IP Suitability - IP20; Environmental - Operating Temperatures - Maximum continuous 75±C, minimum -40±C (w/o impact); Mechanical - Product Identification - Ratings are a permanent part of the device; Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only; Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA - Industry Standard(s): CSA Certified; UL Listed File E1706 - Features: Gripping ribs provide secure gripping area; Supertough nylon housing; Catalog number, ratings and certifications molded in face - Voltage Rating: 125 V; 250 V
