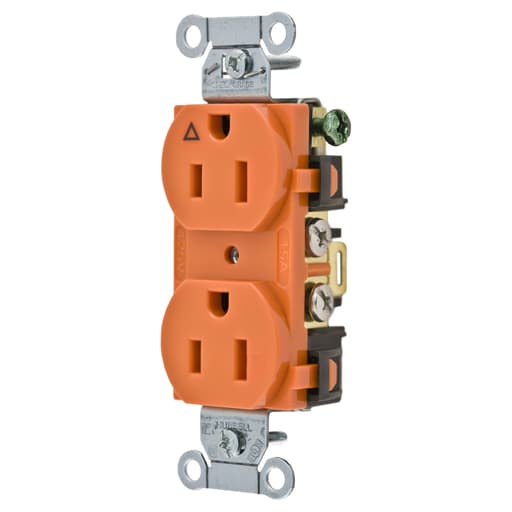

Hubbell Wiring Device - Hubbell IG15CRCOMM 15A SIDE WIRED IG DUPLEX OR

Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585147550
Amperage - 15 Amp
Applications - Commercial Specification Grade
Catalog Number - IG15CR
Color - Orange
Packaging
1 ea
EAN
00783585147550
Part #
184571
Catalog #
IG15CR
Commercial reference
IG15CR
12-Digit UPC:
783585147550
Amperage:
15 Amp
Applications:
Commercial Specification Grade
Catalog Number:
IG15CR
Color:
Orange
Conductor Size:
14-12 AWG
Country of Origin:
China
Current:
15 Amp
ERP_productname:
HUB IG15CR COMM 15A SIDE WIRED IG DUPLEX OR
Family Brand Name:
Hubbell Wiring Device-Kellems
Grade:
Commercial, Specification

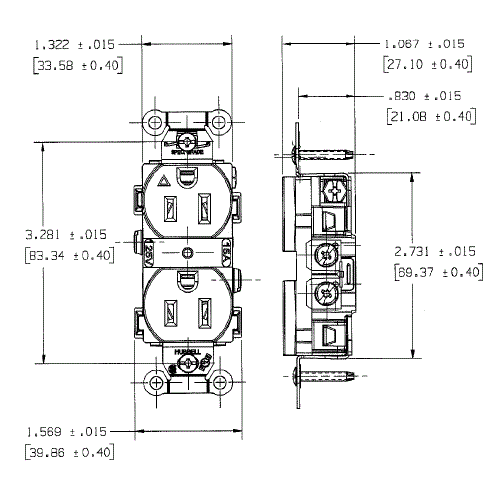

Heights:
3.28 Inch
Horsepower:
0.5 hp
Length:
1.32 Inch
Material:
Thermoplastic
Mounting Type:
Screw, Recessed/Flush
NEMA:
5-15R
Number of Phases:
1 Phase
Number of Poles:
2 Pole
Number of Wires:
3 Wire
Size:
Standard
Sub Brand:
Straight Blade
Tc Connection:
Back and Side Wired Terminal Screws
Type:
Traditional Duplex
Voltage:
125 Volt
Wattage:
1875 Watt
Widths:
0.83 in
Wire Size:
14-10 AWG
SoneparProductId:
SKU_US_73233244
