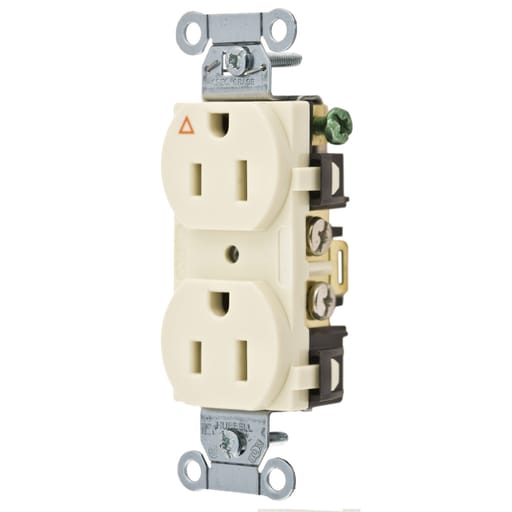

Hubbell Wiring Device - Hubbell IG15CRLACOMM 15A SIDE WIRED IG DUPLEX LA

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585147611

  • Amperage - 15 Amp

  • Applications - For Commercial Applications

  • Catalog Number - IG15CRLA

  • Color - Light Almond

Packaging

  • 1 ea

EAN

00783585147611

Part #

184590

Catalog #

IG15CRLA

Commercial reference

IG15CRLA

12-Digit UPC:

783585147611

Amperage:

15 Amp

Applications:

For Commercial Applications

Catalog Number:

IG15CRLA

Color:

Light Almond

Conductor Size:

14-10 AWG

Country of Origin:

China

Current:

15 Amp

ERP_productname:

HUB IG15CRLA COMM 15A SIDE WIRED IG DUPLEX LA

Family Brand Name:

Hubbell Wiring Device-Kellems

Grade:

Commercial, Specification

Heights:

3.28 Inch

Horsepower:

0.5 hp

Length:

1.32 Inch

Material:

Nylon

Mounting Type:

Flush/Recessed

NEMA:

5-15R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

Standard Sized

Sub Brand:

Straight Blade

Tc Connection:

Back and Side Wired Terminal Screws

Type:

Standard

Voltage:

125 Volt

Wattage:

1875 Watt

Widths:

0.83 in

Wire Size:

14-10

SoneparProductId:

SKU_US_89544743

Straight Blade Devices, Receptacles, Duplex, Commercial Grade, Corrosion Resistant, Smooth Face, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Side Wired, Light Almond. Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current; Electrical - Dielectric Voltage - Withstands 2,000V minimum; Environmental - Flammability - UL 94 V-2; Environmental - Operating Temperatures - Maximum continuous 75±C minimum -40±C (w/o impact); Mechanical - Product Identification - Ratings are a permanent part of the device; Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only; Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA - Industry Standard(s): Certified to CSA C22.2, No. 42; Fed. Spec. W-C-596; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186 - Features: Triangle marking on face indicates isolated ground; Smooth face; Triple wipe contacts
