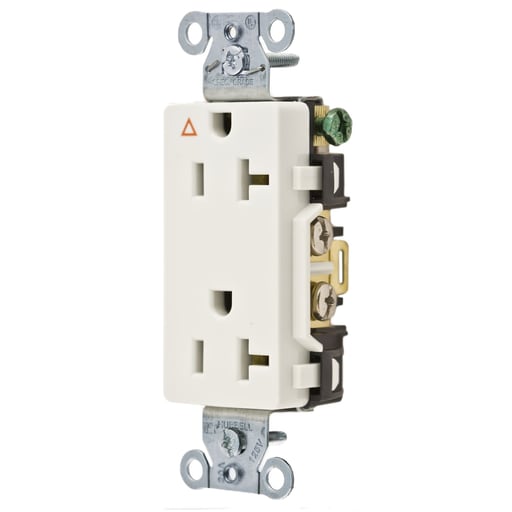

Hubbell Wiring Device - Hubbell IG20DRWHICOMM STYLE LINE S&B WIRED 20A IG DUP WH

12-Digit UPC:

783585147871

Amperage:

20 Amp

Applications:

For Commercial Indoor, Education, Healthcare, Hospitality, Manufacturing, Retail, Warehouse

Catalog Number:

IG20DRWHI

Color:

White

Conductor Size:

14-12 AWG

Country of Origin:

China

Current:

20 Amp

ERP_productname:

HUB IG20DRWHI COMM STYLE LINE S&B WIRED 20A IG DUP WH

Family Brand Name:

Hubbell Wiring Device-Kellems

Grade:

Commercial

Heights:

3.28 Inch

Horsepower:

1 hp

Length:

1.29 Inch

Material:

Thermoplastic

Mounting Type:

Screw

NEMA:

5-20R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

Standard Sized

Sub Brand:

Straight Blade

Tc Connection:

Back and Side Wired Terminal Screws

Type:

Decorator

Voltage:

125 Volt

Wattage:

2500 Watt

Widths:

1.06 in

Wire Size:

12-10 A

SoneparProductId:

SKU_US_30069627
