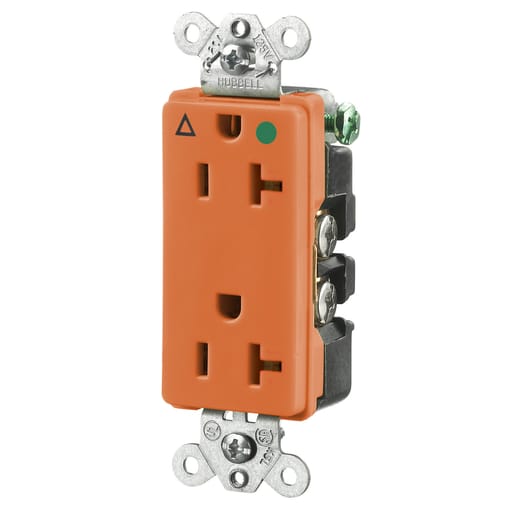

Hubbell Wiring Device - Hubbell IG2182 STYLE HG DUP Receptacle, 20A 125V, 5-20R, OR
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585844497
Amperage - 20 Amp
Applications - Hospitals
Catalog Number - IG2182
Color - Orange
Packaging
1 ea
EAN
00783585844497
Part #
218157
Catalog #
IG2182
Commercial reference
IG2182
12-Digit UPC:
783585844497
Amperage:
20 Amp
Applications:
Hospitals
Catalog Number:
IG2182
Color:
Orange
Conductor Size:
14-12 AWG
Country of Origin:
Puerto Rico
Current:
20 Amp
ERP_productname:
HUB IG2182 STYLE HG DUP RCPT, 20A 125V, 5-20R, OR
Family Brand Name:
Hubbell Wiring Device-Kellems
Grade:
Hospital
Heights:
1.03 Inch
Horsepower:
1 hp
Length:
3.28 Inch
Material:
Thermoplastic
Mounting Type:
Screw
NEMA:
5-20R
Number of Phases:
1 Phase
Number of Poles:
2 Pole
Number of Wires:
3 Wire
Size:
Standard Sized
Sub Brand:
Style Line®
Tc Connection:
Back and Side Wired Terminal Screws
Type:
Decorator
Voltage:
125 Volt
Wattage:
2500 Watt
Widths:
1.36 in
Wire Size:
12-10 AWG
SoneparProductId:
SKU_US_32088070
