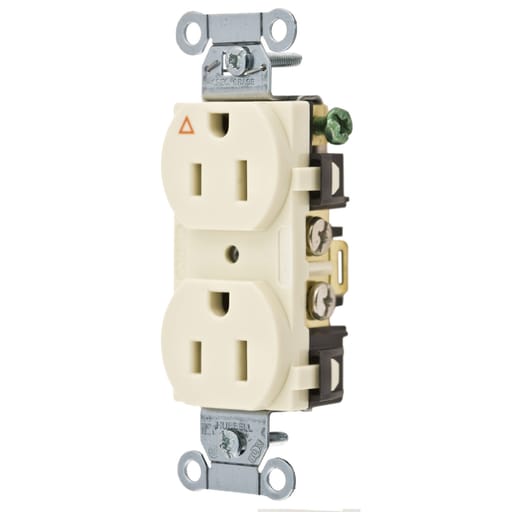

Hubbell Wiring Device - Hubbell IG5252LACOMM 15A SIDE & BACK WIRED IG DUP LA

Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585146782
Amperage - 15 Amp
Applications - Hubbell-Pro
Catalog Number - IG5252LA
Color - Light Almond
Packaging
1 ea
EAN
00783585146782
Part #
159008
Catalog #
IG5252LA
Commercial reference
IG5252LA
12-Digit UPC:
783585146782
Amperage:
15 Amp
Applications:
Hubbell-Pro
Catalog Number:
IG5252LA
Color:
Light Almond
Conductor Size:
14-12 AWG
Country of Origin:
China
Current:
15 Amp
ERP_productname:
HUB IG5252LA COMM 15A SIDE & BACK WIRED IG DUP LA
Family Brand Name:
Hubbell Wiring Device-Kellems
Heights:
1.07 Inch
Horsepower:
0.5 hp
Length:
3.28 Inch
Material:
Thermoplastic
Mounting Type:
Screw, Recessed/Flush
NEMA:
5-15R
Number of Phases:
1 Phase
Number of Poles:
2 Pole
Number of Wires:
3 Wire
Size:
Standard
Sub Brand:
Straight Blade
Tc Connection:
Back and Side Wired Terminal Screws
Type:
Traditional
Voltage:
125 Volt
Wattage:
1875 Watt
Widths:
1.57 in
Wire Size:
14-10
SoneparProductId:
SKU_US_29470832
