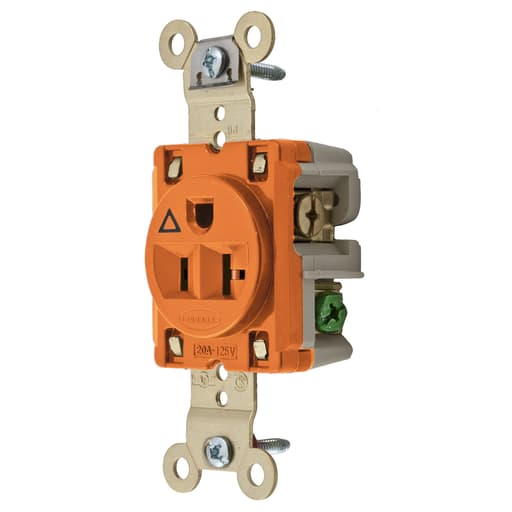

Hubbell Wiring Device - Hubbell IG5361 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Orange Isolated Ground Single Straight Blade Receptacle

12-Digit UPC:

783585876856

Amperage:

20 Amp

Applications:

Extra Heavy Duty

Catalog Number:

IG5361

Color:

Orange

Conductor Size:

14-10 AWG

Country of Origin:

USA

Current:

20 Amp

ERP_productname:

HUB IG5361 STRAIGHT BLADE RECPT

Family Brand Name:

Hubbell Incorporated

Heights:

1.19 Inch

Horsepower:

1 hp

Length:

3.28 Inch

Material:

Thermoplastic

NEMA:

5-20R

Number of Phases:

1 Phase

Number of Poles:

2-2 Pole

Number of Wires:

3,3

Size:

Standard Sized

Sub Brand:

Straight Blade

Tc Connection:

Back and Side Wired Terminal Screws

Type:

Single

Voltage:

125 Volt

Wattage:

2500 Watt

Widths:

1.63 in

Wire Size:

14-10 AWG

SoneparProductId:

SKU_US_25506216
