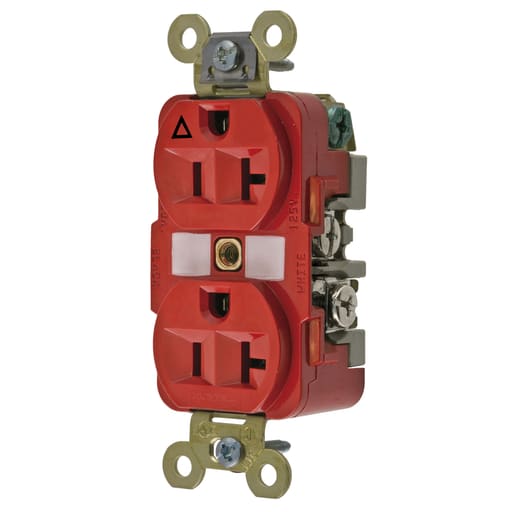

Hubbell Wiring Device - Hubbell IG5362RDUP Receptacle, IG, 20A 125V, 5-20R, RD
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585876894
Amperage - 20 Amp
Applications - Extra Heavy Duty
Catalog Number - IG5362R
Color - Red
Packaging
1 ea
EAN
00783585876894
Part #
199893
Catalog #
IG5362R
Commercial reference
IG5362R
12-Digit UPC:
783585876894
Amperage:
20 Amp
Applications:
Extra Heavy Duty
Catalog Number:
IG5362R
Color:
Red
Conductor Size:
14-12 AWG
Country of Origin:
USA
Current:
20 Amp
ERP_productname:
HUB IG5362R DUP RCPT, IG, 20A 125V, 5-20R, RD
Family Brand Name:
Hubbell Wiring Device-Kellems
Heights:
1.05 Inch
Horsepower:
1 hp
Length:
3.28 Inch
Material:
Thermoplastic
Mounting Type:
Screw
NEMA:
5-20R
Number of Phases:
1 Phase
Number of Poles:
2 Pole
Number of Wires:
3 Wire
Size:
Standard
Sub Brand:
Straight Blade
Tc Connection:
Back & Side Wired
Type:
Traditional
Voltage:
125 Volt
Wattage:
2500 Watt
Widths:
1.33 in
Wire Size:
12-10 A
SoneparProductId:
SKU_US_31193576
