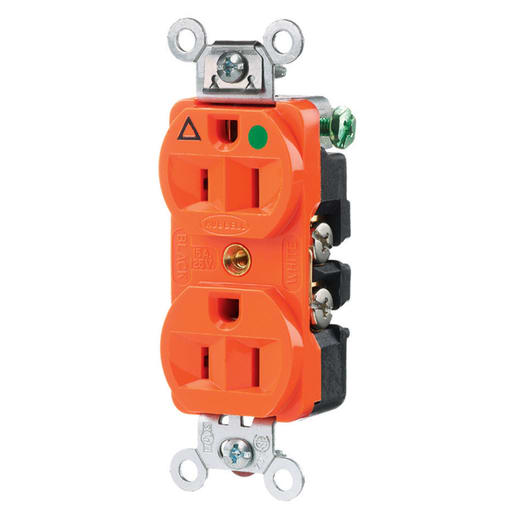

Hubbell Wiring Device - Hubbell IG8200DUP Receptacle, IG, HG, 15A 125V, 5-15R, OR
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585842509
Amperage - 15 Amp
Applications - Extra Heavy Duty, Hospitals
Catalog Number - IG8200
Color - Orange
Packaging
1 ea
EAN
00783585842509
Part #
224809
Catalog #
IG8200
Commercial reference
IG8200
12-Digit UPC:
783585842509
Amperage:
15 Amp
Applications:
Extra Heavy Duty, Hospitals
Catalog Number:
IG8200
Color:
Orange
Conductor Size:
14-12 AWG
Country of Origin:
USA
Current:
15 Amp
ERP_productname:
HUB IG8200 DUP RCPT, IG, HG, 15A 125V, 5-15R, OR
Family Brand Name:
Hubbell Wiring Device-Kellems
Grade:
Hospital
Heights:
1.05 Inch
Horsepower:
0.5 hp
Length:
3.28 Inch
Material:
Thermoplastic
Mounting Type:
Screw
NEMA:
5-15R
Number of Phases:
1 Phase
Number of Poles:
2 Pole
Number of Wires:
3 Wire Grounding
Size:
Standard
Sub Brand:
Straight Blade and Twist-Lock
Tc Connection:
Back & Side Wired
Type:
Isolated Ground, Extra Heavy Duty
Voltage:
125 Volt
Wattage:
1875 Watt
Widths:
1.33 in
Wire Size:
14-10 AWG
SoneparProductId:
SKU_US_29027904
