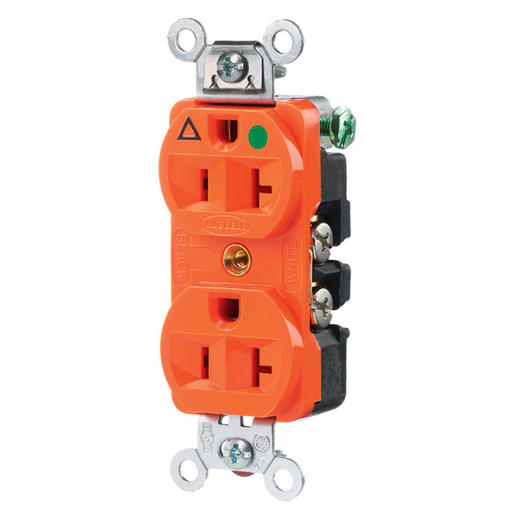

Hubbell Wiring Device - Hubbell IG8300 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Orange Isolated Ground Straight Blade Duplex Receptacle

12-Digit UPC:

783585778440

Amperage:

20 Amp

Applications:

For Conduit Bending

Catalog Number:

IG8300

Color:

Orange

Conductor Size:

14-12 AWG

Country of Origin:

USA

Current:

20 Amp

ERP_productname:

HUB IG8300 DUP RCPT, IG, HG, 20A 125V, 5-20R, OR

Family Brand Name:

Hubbell Wiring Device-Kellems

Finish:

Matte

Grade:

Hospital

Heights:

1.05 Inch

Horsepower:

1 hp

Length:

3.28 Inch

Material:

Thermoplastic

Mounting Type:

Screw, Flush

NEMA:

5-20R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire Grounding

Size:

Standard

Sub Brand:

Straight Blade

Tc Connection:

Back and Side Wired Terminal Screws

Type:

Isolated Ground, Extra Heavy Duty

Voltage:

125 Volt

Wattage:

1875 Watt

Widths:

1.33 in

Wire Size:

12-10 AWG

SoneparProductId:

SKU_US_25489331
