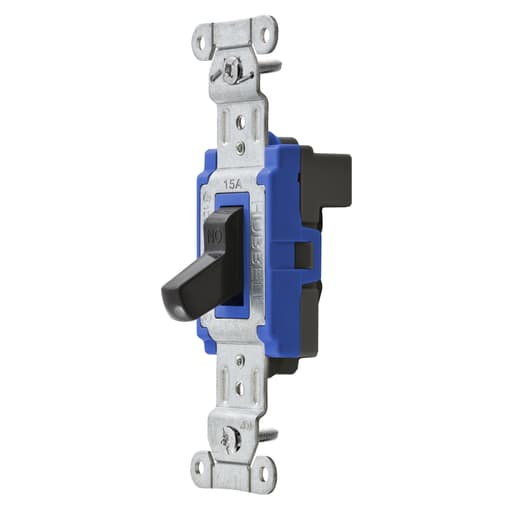

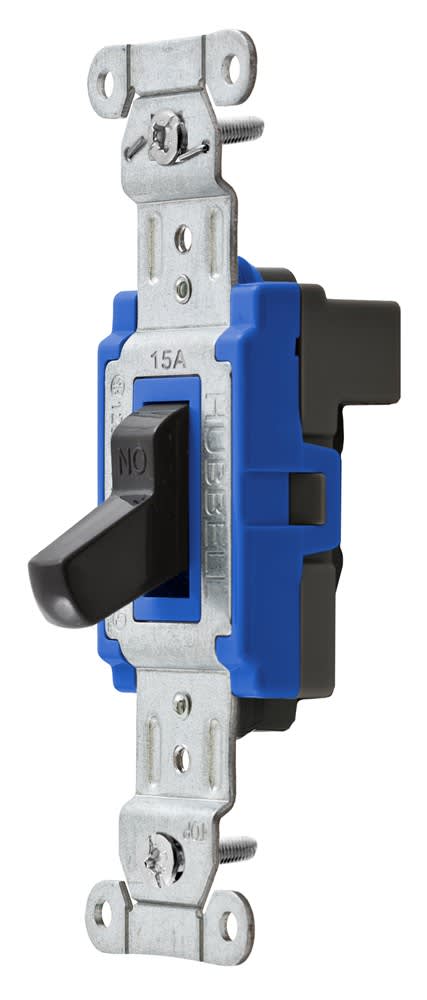

Hubbell Wiring Device - Hubbell SNAP1203BKNA SWITCH, SNAPCONN, 3W, 15A120/277V, BK, NA

Essential specifications

12-Digit UPC - 783585186054
Actuator - Toggle
Amperage - 15 Amp
Applications - General Purpose
Catalog Number - SNAP1203BKNA

Packaging

1 ea

EAN

00783585186054

Part #

261819

Catalog #

SNAP1203BKNA

Commercial reference

SNAP1203BKNA

12-Digit UPC:

783585186054

Actuator:

Toggle

Amperage:

15 Amp

Applications:

General Purpose

Catalog Number:

SNAP1203BKNA

Color:

Black

Country of Origin:

USA

Current:

15 Amp

ERP_productname:

HUB SNAP1203BKNA SWITCH,SNAPCONN,3W,15A120/277V,BK,N A

Enclosure:

None

Family Brand Name:

Hubbell Incorporated

Heights:

1.74 Inch

Length:

4.18 Inch

Material:

Thermoplastic

Max Current:

15 A

Max Voltage:

277 V

Number of Poles:

1 Pole

Size:

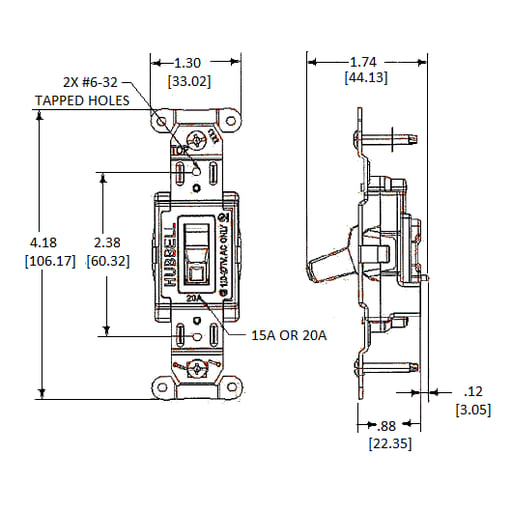

4.18 in x 1.3 in x 1.74 in

Sub Brand:

SNAPConnect Series

Tc Connection:

Connectorized

Type:

Toggle

Voltage:

120-277 Volt

Wattage:

4155 Watt

Widths:

1.3 in

SoneparProductId:

SKU_US_25195116

Switches and Lighting Controls, Industrial/Commercial Grade, SNAPConnect Series, Toggle Switches, Three Way, 15A 120/277V AC, Black Toggle, North American Features: Steel, zinc plated bridge is corrosion resistant; Thread cleaning captive mounting screw; SNAP Connect, Automatic self-grounding; Automatic self-grounding staple assures continuity to wall box - Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute; Electrical - Max. Continuous Current - 15A; Electrical - Max. Working Voltage - 277V AC; Electrical - Overload - Minimum 4.8 times rated current for 100 cycles; Electrical - Temperature Rise - 30±C maximum at rated current; Environmental - Flammability - UL 94V-2; Environmental - Operating Temperature - Max. continuous: 75±C, Min. continuous: -40±C without impact; Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
