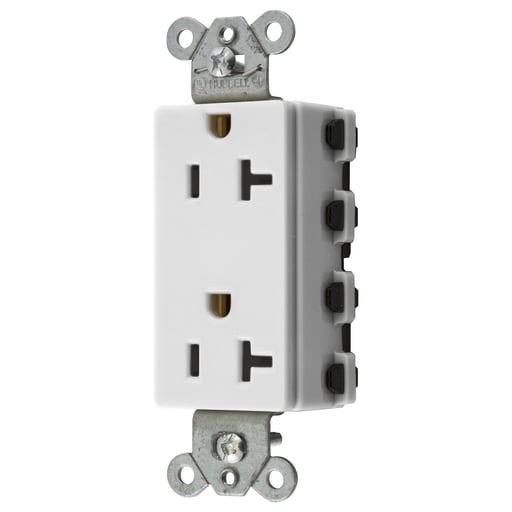

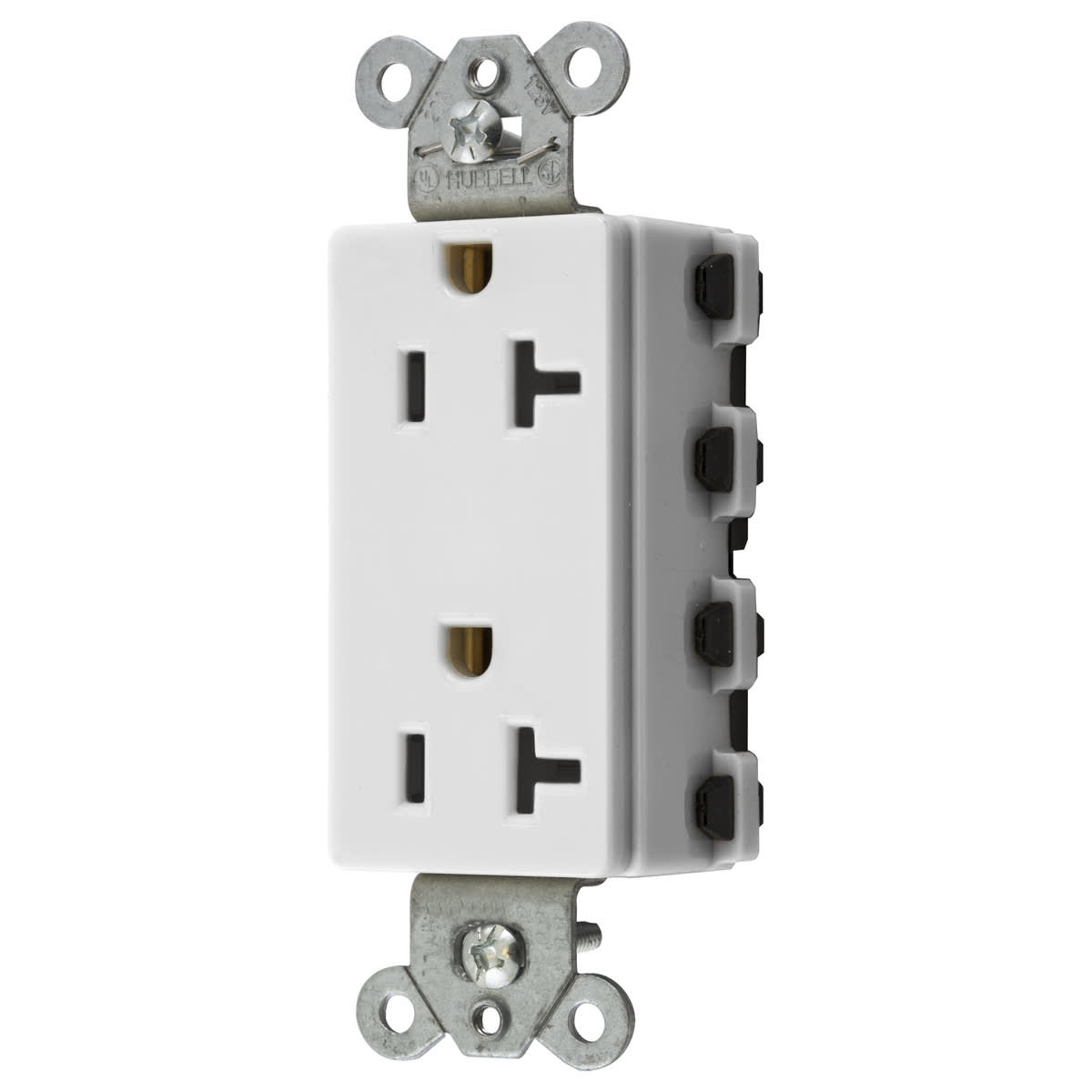

Hubbell Wiring Device - Hubbell SNAP2162WA 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R White Decorator Straight Blade Receptacle

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585248028

  • Amperage - 20 Amp

  • Applications - Extra Heavy Duty Specification Grade

  • Catalog Number - SNAP2162WA

  • Color - White

Packaging

  • 1 ea

EAN

00783585248028

Part #

288472

Catalog #

SNAP2162WA

Commercial reference

SNAP2162WA

12-Digit UPC:

783585248028

Amperage:

20 Amp

Applications:

Extra Heavy Duty Specification Grade

Catalog Number:

SNAP2162WA

Color:

White

Conductor Size:

12 AWG

Country of Origin:

China

Current:

20 Amp

ERP_productname:

HUB SNAP2162WA SNAP2CONNECT 20A/125V DECO,WHITE

Family Brand Name:

Hubbell Wiring Device-Kellems

Heights:

1.1 Inch

Horsepower:

1 hp

Length:

3.28 Inch

Material:

Nylon

NEMA:

5-20R

Number of Conductors:

3

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

3.28 in x 1.64 in x 1.1 in

Sub Brand:

Straight Blade Devices

Tc Connection:

Connectorized

Type:

Non-Reversing

Voltage:

125 Volt

Wattage:

2500 Watt

Widths:

1.64 in

Wire Size:

12 AWG

SoneparProductId:

SKU_US_25628444

Straight Blade Devices, Receptacles, Style Line Decorator Duplex, SNAPConnect, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Nylon, White Performance: Electrical - Current Interrupting - Receptacle certified for current interrupting at full rated current; Electrical - Dielectric Voltage - Withstands 2,000V minimum; Environmental - Flammability - UL 94V-2; Environmental - Operating Temperature - Maximum continuous 75±C, minimum -40±C (without impact); Mechanical - Product Identification - Ratings are a permanent part of the device - Industry Standard(s): Certified to CSA, C22.2, No. 42 File 285; Fed. Spec. W-C-596; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186 - Features: Aesthetic Style Line® decorator design; Audible SNAP, indicates solid connection; Quick Connect- SNAPConnect; Reduces installation time; Fully insulated design
