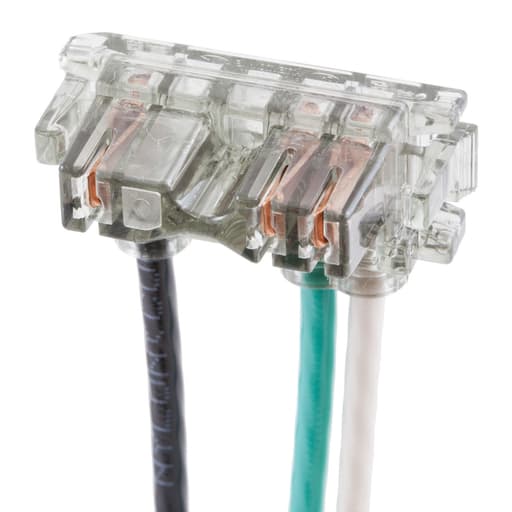

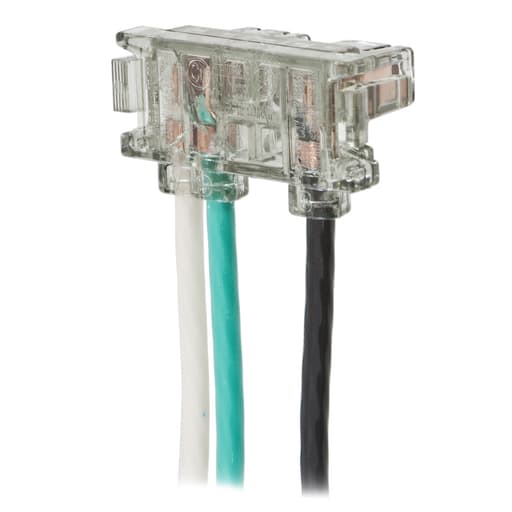

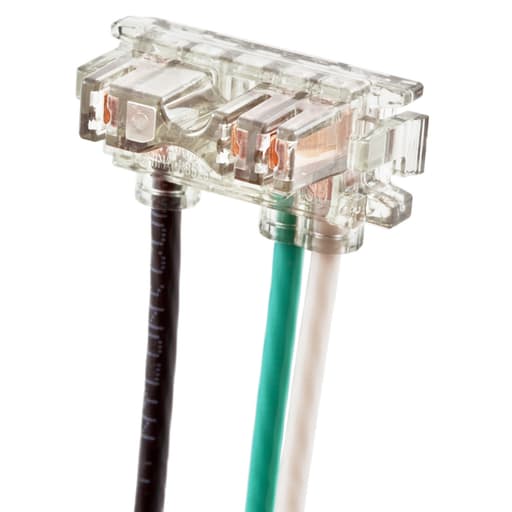

Hubbell Wiring Device - Hubbell SNAP2RA 6 Inch 12 AWG Stranded Lead Clear Polycarbonate Right Angle Pigtailed Terminal

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585251998

  • Amperage - 15 Amp

  • Applications - For Quick Connection Application

  • Catalog Number - SNAP2RA

  • Color - Clear

Packaging

  • 1 ea

EAN

00783585251998

Part #

181188

Catalog #

SNAP2RA

Commercial reference

SNAP2RA

12-Digit UPC:

783585251998

Amperage:

15 Amp

Applications:

For Quick Connection Application

Catalog Number:

SNAP2RA

Color:

Clear

Conductor Size:

12 AWG

Country of Origin:

China

Current:

15-20 Amp

ERP_productname:

HUB SNAP2RA SNAPCONNECT 6" STRANDED WIRE CONN R/A

Family Brand Name:

Hubbell Wiring Device-Kellems

Heights:

0.79 Inch

Length:

1.48 Inch

Material:

Polycarbonate

Number of Conductors:

3-Wire Grounding

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Overall Length:

1.48 in

Size:

1.48 in x 0.78 in x 0.63 in

Sub Brand:

SnapConnect®

Tc Connection:

Screw Terminals

Type:

Straight and Right Angled, Standard Size

Voltage:

125 Volt

Widths:

0.78 in

Wire Size:

12 AWG

SoneparProductId:

SKU_US_25628473

Straight Blade Devices, Receptacles, SNAP-CONNECT Connector, SNAP-CONNECT Series, 2-Pole 3-Wire Grounding, 20A 125V, Stranded, Right Angled, Clear terminal with 6-inch leads Industry Standard(s): Certified to CSA, C22.2, No. 42 File 285; Fed. Spec. W-C-596; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186 - Features: Transparent housing to inspect contacts; Audible SNAP, indicates solid connection; Reduces installation time; Fully insulated design - Performance: Electrical: Current Interrupting- Certified for current interrupting at full rated current; Electrical: Dielectric Voltage- Withstands 2,000V minimum; Mechanical: Product Identification Ratings are a permanent part of the device; Environmental: Flammability- UL 94V-2; Environmental: Operating Temperature- Maximum continuous 75±C, minimum -40±C (w/o impact)
