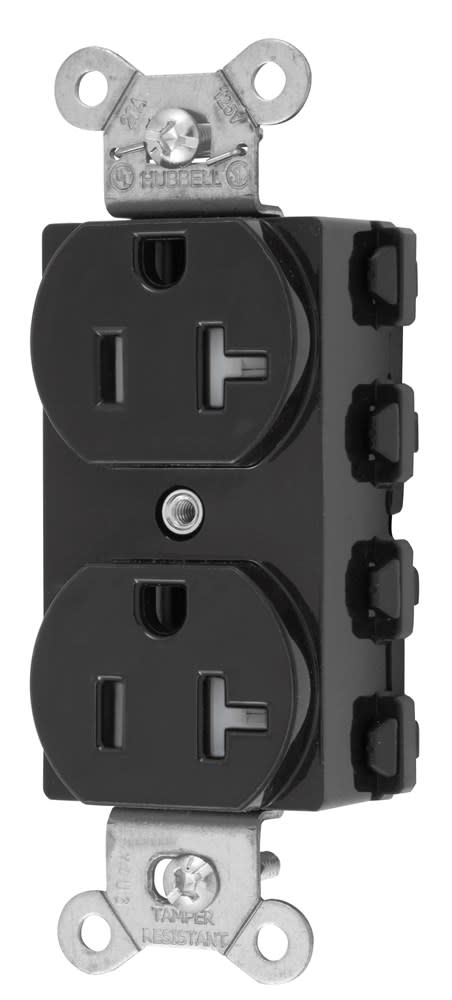

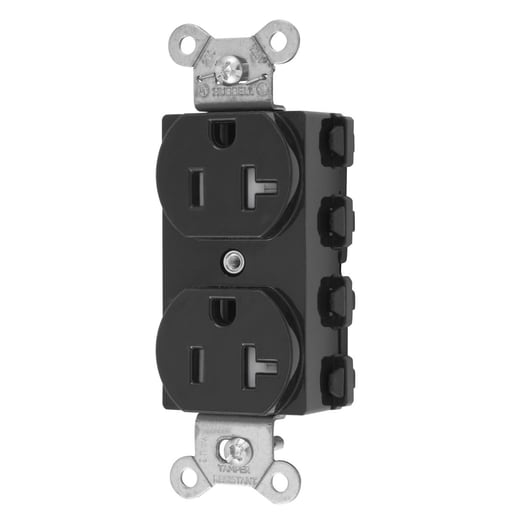

Hubbell Wiring Device - Hubbell SNAP5362BKTRA S-CONNECT DUP 20A/125V TR BK

Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585552880
Amperage - 20 Amp
Applications - Extra Heavy Duty Specification Grade
Catalog Number - SNAP5362BKTRA
Color - Black
Packaging
1 ea
EAN
00783585552880
Part #
402933
Catalog #
SNAP5362BKTRA
Commercial reference
SNAP5362BKTRA
12-Digit UPC:
783585552880
Amperage:
20 Amp
Applications:
Extra Heavy Duty Specification Grade
Catalog Number:
SNAP5362BKTRA
Color:
Black
Conductor Size:
12 AWG
Country of Origin:
China
Current:
20 Amp
ERP_productname:
HUB SNAP5362BKTRA S-CONNECT DUP 20A/125V TR BK
Family Brand Name:
Hubbell Wiring Device-Kellems
Heights:
1.1 Inch
Horsepower:
1 hp
Length:
3.28 Inch
Material:
Nylon
NEMA:
5-20R
Number of Conductors:
3
Number of Poles:
2 Pole
Number of Wires:
3 Wire
Size:
3.28 in x 1.64 in x 1.1 in
Sub Brand:
Straight Blade Devices
Tc Connection:
Terminal Screws
Type:
Non-Reversing
Voltage:
125 Volt
Wattage:
2500 Watt
Widths:
1.64 in
Wire Size:
12 AWG
SoneparProductId:
SKU_US_89546772
