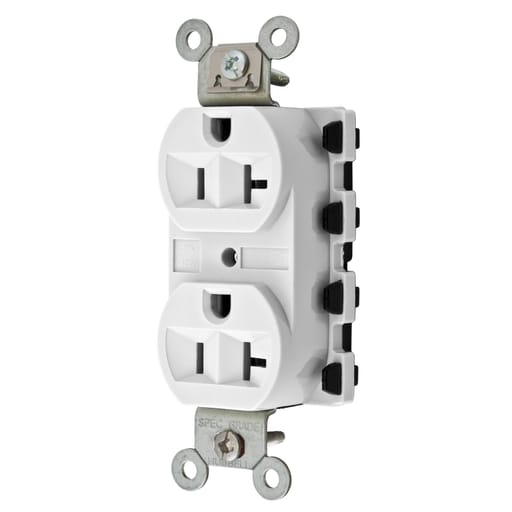

Hubbell Wiring Device - Hubbell SNAP5362WA 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R White Straight Blade Duplex Receptacle

CopyCopy
Hubbell Wiring Device - Hubbell SNAP5362WA 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R White Straight Blade Duplex Receptacle

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585247700

  • Amperage - 20 Amp

  • Applications - Duplex Receptacle

  • Catalog Number - SNAP5362WA

  • Color - White

Packaging

  • 1 ea

EAN

00783585247700

Part #

129066

Catalog #

SNAP5362WA

Commercial reference

SNAP5362WA

12-Digit UPC:

783585247700

Amperage:

20 Amp

Applications:

Duplex Receptacle

Catalog Number:

SNAP5362WA

Color:

White

Conductor Size:

12 AWG

Country of Origin:

China

Current:

20 Amp

ERP_productname:

HUBW SNAP5362WA 20A/125V HG RCPT

Family Brand Name:

Hubbell Wiring Device-Kellems

Heights:

1.1 Inch

Horsepower:

1 hp

Length:

3.28 Inch

Material:

Nylon

NEMA:

5-20R

Number of Conductors:

3

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

Standard Sized Product

Sub Brand:

Straight Blade Receptacles

Tc Connection:

Pre-Wired Connector

Type:

Non-Reversing

Voltage:

125 Volt

Wattage:

2500 Watt

Widths:

1.56 in

Wire Size:

12 AWG

SoneparProductId:

SKU_US_25678908

Straight Blade Devices, Receptacles, Duplex, SNAPConnect, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Nylon, White Performance: Electrical - Current Interrupting - Receptacle certified for current interrupting at full rated current; Electrical - Dielectric Voltage - Withstands 2,000V minimum; Environmental - Flammability - UL 94V-2; Environmental - Operating Temperature - Maximum continuous 75±C, minimum -40±C (without impact); Mechanical - Product Identification - Ratings are a permanent part of the device - Industry Standard(s): Certified to CSA, C22.2, No. 42 File 285; Fed. Spec. W-C-596; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186 - Features: Audible SNAP, indicates solid connection; Quick Connect- SNAPConnect; Reduces installation time; Fully insulated design
