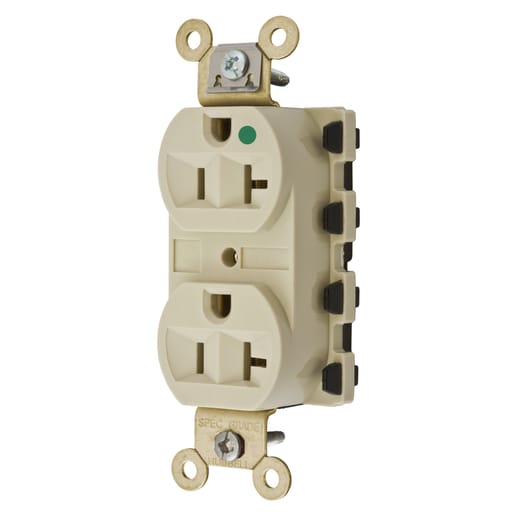

Hubbell Wiring Device - Hubbell SNAP8300IA 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Ivory Straight Blade Duplex Receptacle

CopyCopy
Hubbell Wiring Device - Hubbell SNAP8300IA 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Ivory Straight Blade Duplex Receptacle

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585247656

  • Amperage - 20 Amp

  • Applications - Hospital Grade

  • Catalog Number - SNAP8300IA

  • Color - Ivory

Packaging

  • 1 ea

EAN

00783585247656

Part #

181170

Catalog #

SNAP8300IA

Commercial reference

SNAP8300IA

12-Digit UPC:

783585247656

Amperage:

20 Amp

Applications:

Hospital Grade

Catalog Number:

SNAP8300IA

Color:

Ivory

Conductor Size:

12 AWG

Country of Origin:

China

Current:

20 Amp

ERP_productname:

HUB SNAP8300IA SNAP2CONNECT 20A/125V HG DPLX,IVORY

Enclosure Material:

Stainless Steel

Family Brand Name:

Hubbell Wiring Device-Kellems

Grade:

Hospital

Heights:

1.1 Inch

Horsepower:

1 hp

Length:

3.28 Inch

Material:

Thermoplastic

Mounting Type:

Screw

NEMA:

5-20R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

Standard

Sub Brand:

Quick Connect™, SnapConnect®

Tc Connection:

Connectorized

Type:

Traditional

Voltage:

125 Volt

Wattage:

2500 Watt

Widths:

1.64 in

Wire Size:

12

SoneparProductId:

SKU_US_25683380

Straight Blade Devices, Receptacles, Duplex, SNAPConnect, Hospital Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Nylon, Ivory Features: Audible SNAP, indicates solid connection; Reduces installation time; Fully insulated design - Performance: Electrical: Current Interrupting- Certified for current interrupting at full rated current; Electrical: Dielectric Voltage- Withstands 2,000V minimum; Mechanical: Product Identification Ratings are a permanent part of the device; Environmental: Flammability- UL 94V-2; Environmental: Operating Temperature- Maximum continuous 75±C, minimum -40±C (w/o impact) - Industry Standard(s): CSA Certified, C22.2, No. 42 File 285; Fed. Spec. W-C-596; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186
