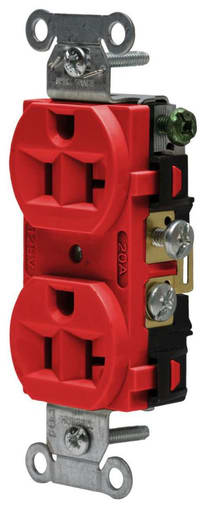

Hubbell Wiring Device - HWDK 5362AR RCPT, DUP SB, HUBPRO, 2
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585531151
Amperage - 20 Amp
Catalog Number - 5362AR
Color - Red
Conductor Size - 12-10 AWG
Packaging
1 ea
EAN
00783585531151
Part #
181020
Catalog #
5362AR
Commercial reference
5362AR
12-Digit UPC:
783585531151
Amperage:
20 Amp
Catalog Number:
5362AR
Color:
Red
Conductor Size:
12-10 AWG
Country of Origin:
China
Current:
20 Amp
ERP_productname:
HUB 5362AR RCPT, DUP SB, HUBPRO, 20A 125V, FG, RD
Family Brand Name:
Hubbell Wiring Device-Kellems
Grade:
Heavy Duty Commercial,Industrial
Heights:
1.1 Inch
Length:
4.2 Inch
Material:
Composite
Number of Poles:
2 Pole
Number of Wires:
3 Wire
Voltage:
125 Volt
Wattage:
1875 Watt
Widths:
1.600 in
Wire Size:
12-10 AWG
SoneparProductId:
SKU_US_198607863
Straight Blade Receptacle Features: Easy Access Split Circuit Tab; Finder Groove Face; Triple Wipe Contacts; Wrap Around Galvanized Steel Strap - Additional Information: Power Rating 1875 Watt; Dielectric Voltage 2000 Volt; Wire Size 12 to 10 AWG; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification W-C-596
