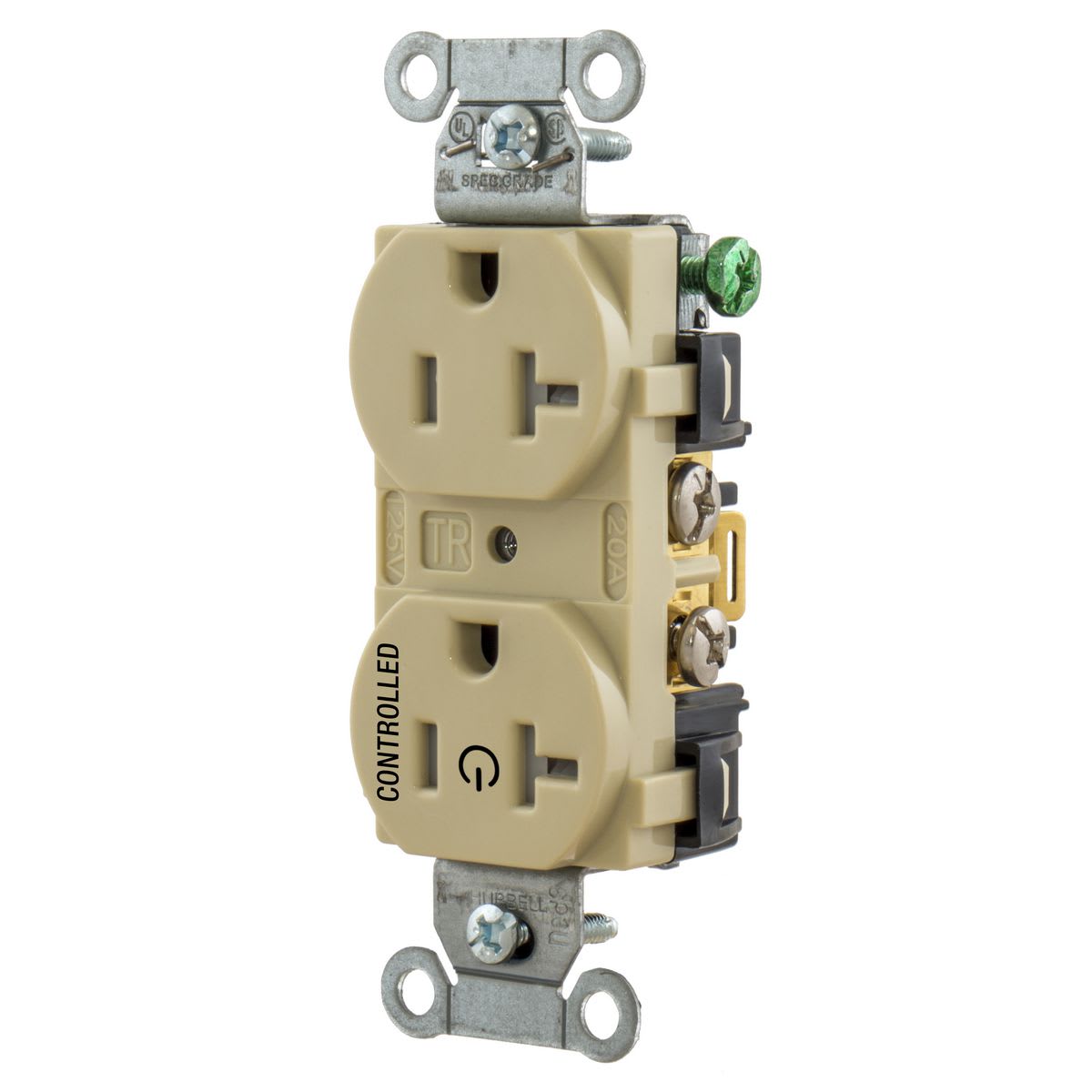

Hubbell Wiring Device - HWDK BR20C1ITR 1/2 CONTROLLED 20A 1

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585582634

  • Amperage - 20 Amp

  • Applications - Commercial Specification Grade Duplex

  • Catalog Number - BR20C1ITR

  • Color - Ivory

Packaging

  • 1 ea

EAN

00783585582634

Part #

381696

Catalog #

BR20C1ITR

Commercial reference

BR20C1ITR

12-Digit UPC:

783585582634

Amperage:

20 Amp

Applications:

Commercial Specification Grade Duplex

Catalog Number:

BR20C1ITR

Color:

Ivory

Conductor Size:

12-10 AWG

Country of Origin:

China

Current:

20 Amp

ERP_productname:

HUB BR20C1ITR 1/2 CONTROLLED 20A 125V, B/S, TR DUP, IV

Family Brand Name:

Hubbell Incorporated

Heights:

1.7 Inch

Length:

4.3 Inch

Material:

Nylon

NEMA:

5-20R

Number of Poles:

2-2 Pole

Number of Wires:

3,3

Type:

Tamper-Resistant

Voltage:

125 Volt

Widths:

1.900 in

Wire Size:

12-10 AWG

SoneparProductId:

SKU_US_181216606

Straight Blade Devices, Receptacles, Duplex, 1/2 Load Controlled, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Back and Side Wired, Ivory Features: Permanently marked with universal power symbol and the word \"CONTROLLED\" to visually identify receptacles used in automatic energy management systems; Patented TR design eliminates plug-in difficulty and TR complaints; Markings can be read regardless of mounting orientation; Complies with NEC Section 406.3, ASHRAE 90.1, and California Title 24 requirements; Complements Hubbell's Load:Logic® control system or other available energy management system
