Hubbell Wiring Device - HWDK HBL2603 LKG CONN, 30A 240V L-N
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585580296
Applications - Heavy Duty
Catalog Number - HBL2603
Color - Black/White
Conductor Size - 16-8 AWG
Packaging
1 ea
EAN
00783585580296
Part #
317200
Catalog #
HBL2603
Commercial reference
HBL2603
12-Digit UPC:
783585580296
Applications:
Heavy Duty
Catalog Number:
HBL2603
Color:
Black/White
Conductor Size:
16-8 AWG
Country of Origin:
USA
ERP_productname:
HUB HBL2603 LKG CONN, 30A 240V L-N, L25-30R, B/W
Family Brand Name:
Hubbell Incorporated
Heights:
3.86 Inch
Length:
1.97 Inch
Number of Conductors:
3-Wire
Number of Poles:
2-2 Pole
Number of Wires:
3 Wire
Size:
Standard
Sub Brand:
Twist-Lock
Type:
Insulgrip
Voltage:
30 A
Widths:
2.5 in
Wire Size:
16-8 AWG
SoneparProductId:
SKU_US_30965010

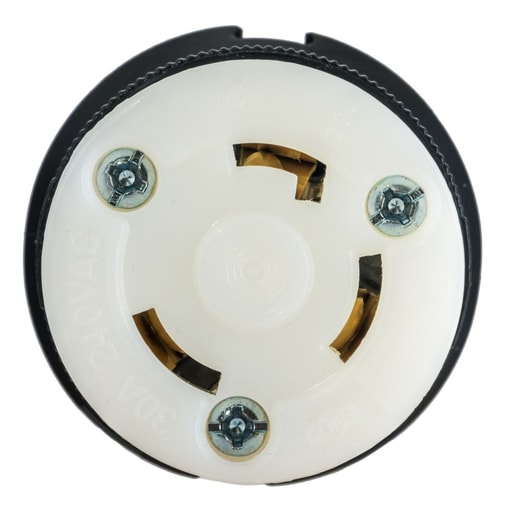

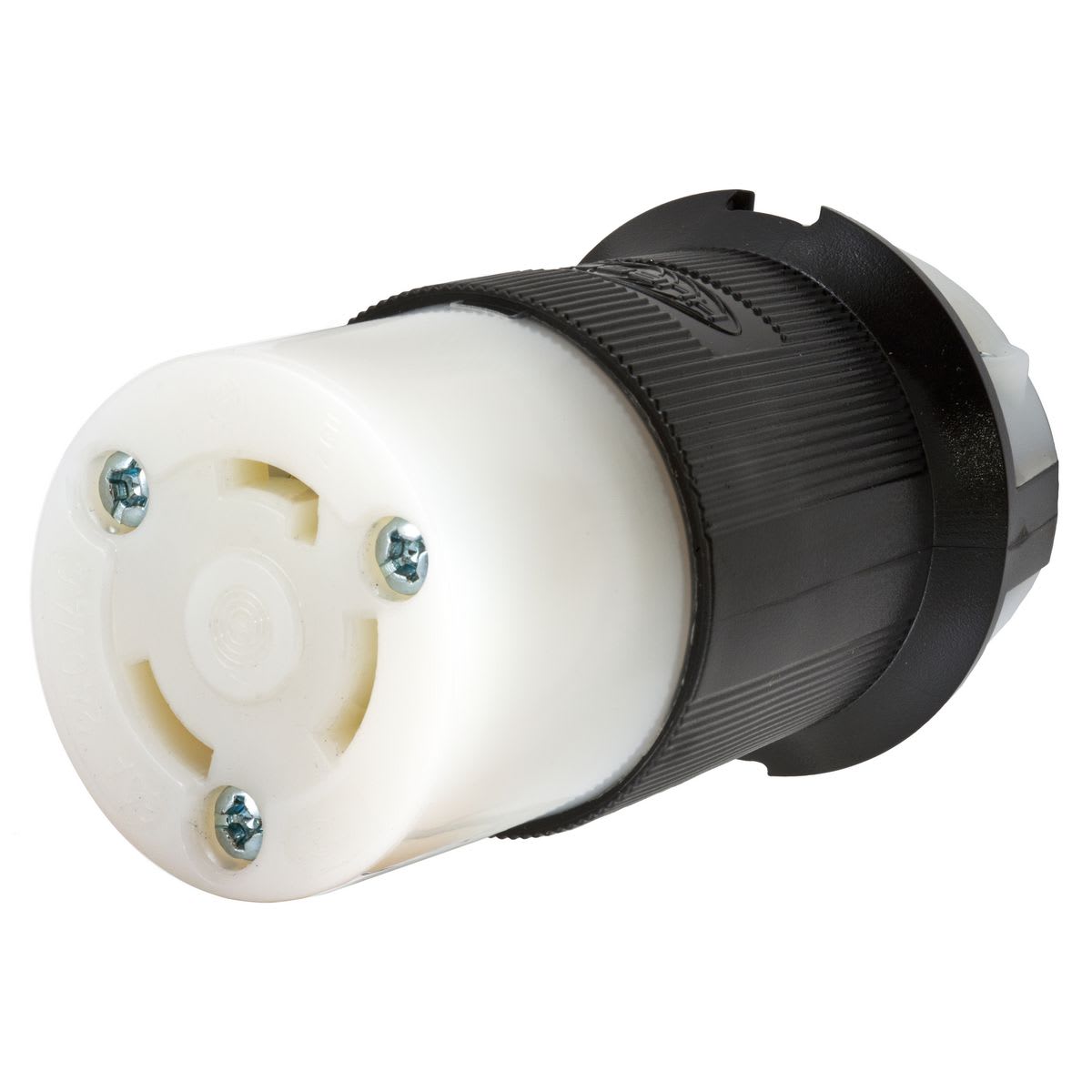

Locking Devices, Twist-Lock®, Insulgrip® Connector, 30A, 2 Pole, 3 Wire, 240VAC, Line to Neutral, NEMA L25-30R, Black and White Nylon Features: Ribbed nylon housing provides a secure grip and impact and chemical resistance; Superior cord grip design protects terminations from excess strain; Clear, funnel shaped wire entry for ease of termination; Integral, dust shield protects wiring chamber from dust or contaminants
