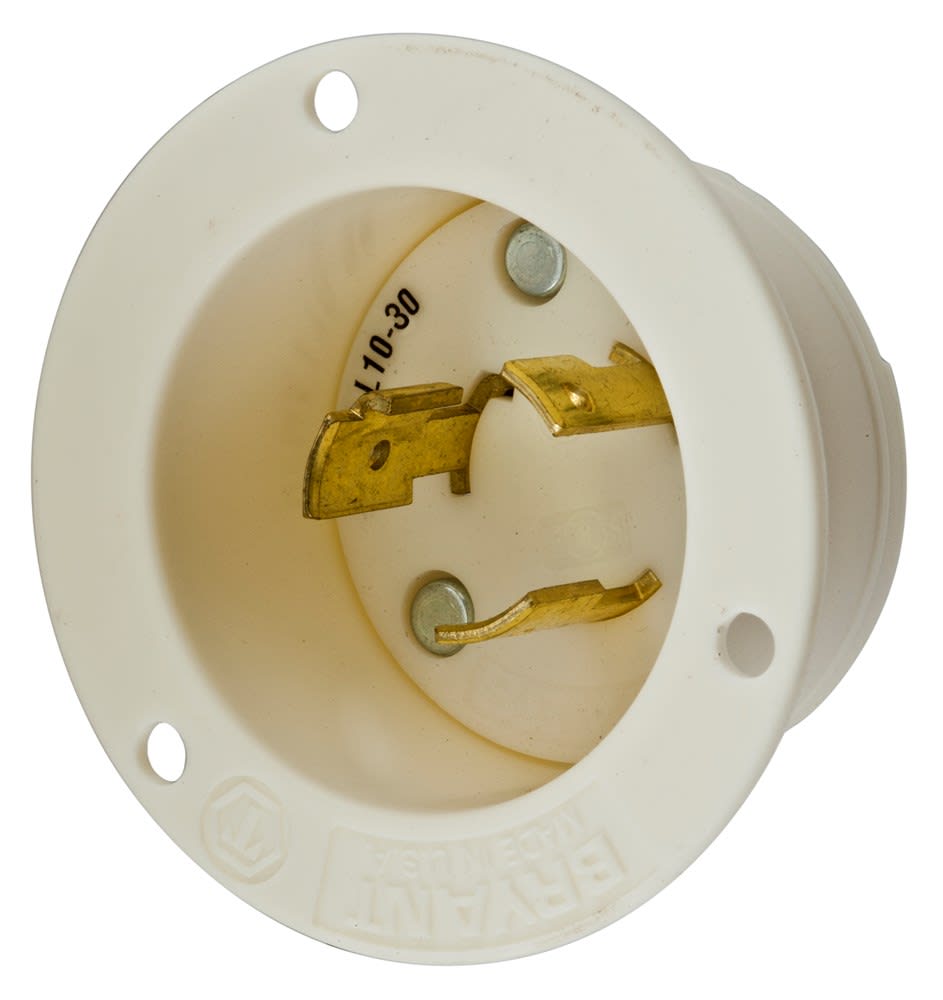

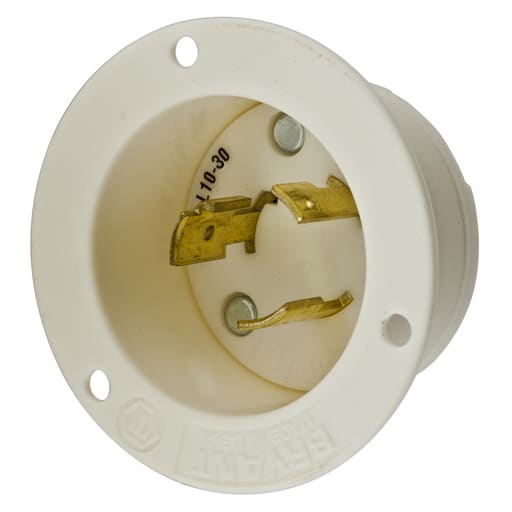

Hubbell Wiring Device - HWDK HBL2665 LKG FLG INLT, 30A 125/
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585456805
Amperage - 30 Amp
Catalog Number - HBL2665
Color - White
Conductor Size - 16-8 AWG
Packaging
1 ea
EAN
00783585456805
Part #
231578
Catalog #
HBL2665
Commercial reference
HBL2665
12-Digit UPC:
783585456805
Amperage:
30 Amp
Catalog Number:
HBL2665
Color:
White
Conductor Size:
16-8 AWG
Country of Origin:
USA
Current:
30 Amp
ERP_productname:
HUB HBL2665 LKG FLG INLT, 30A 125/250V, L10-30P, WH
Family Brand Name:
Hubbell Incorporated
Heights:
2.98 Inch
Length:
2.98 Inch
Material:
Nylon
NEMA:
L10-30P
Number of Phases:
1 Phase
Number of Poles:
3-3 Pole
Number of Wires:
3,3
Type:
Non-Reversing
Voltage:
125/250 Volt
Widths:
2.980 in
Wire Size:
16-8 AWG
SoneparProductId:
SKU_US_181658209
Locking Devices, Twist-Lock®, Insulgrip® Flanged Inlet, 30A, 125/250V AC, 3 Pole, 3 Wire Non-Grounding, NEMA L10-30P, Nylon casing, back wired Features: Backwired terminations for ease of installation; #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson); Mounting screws included
