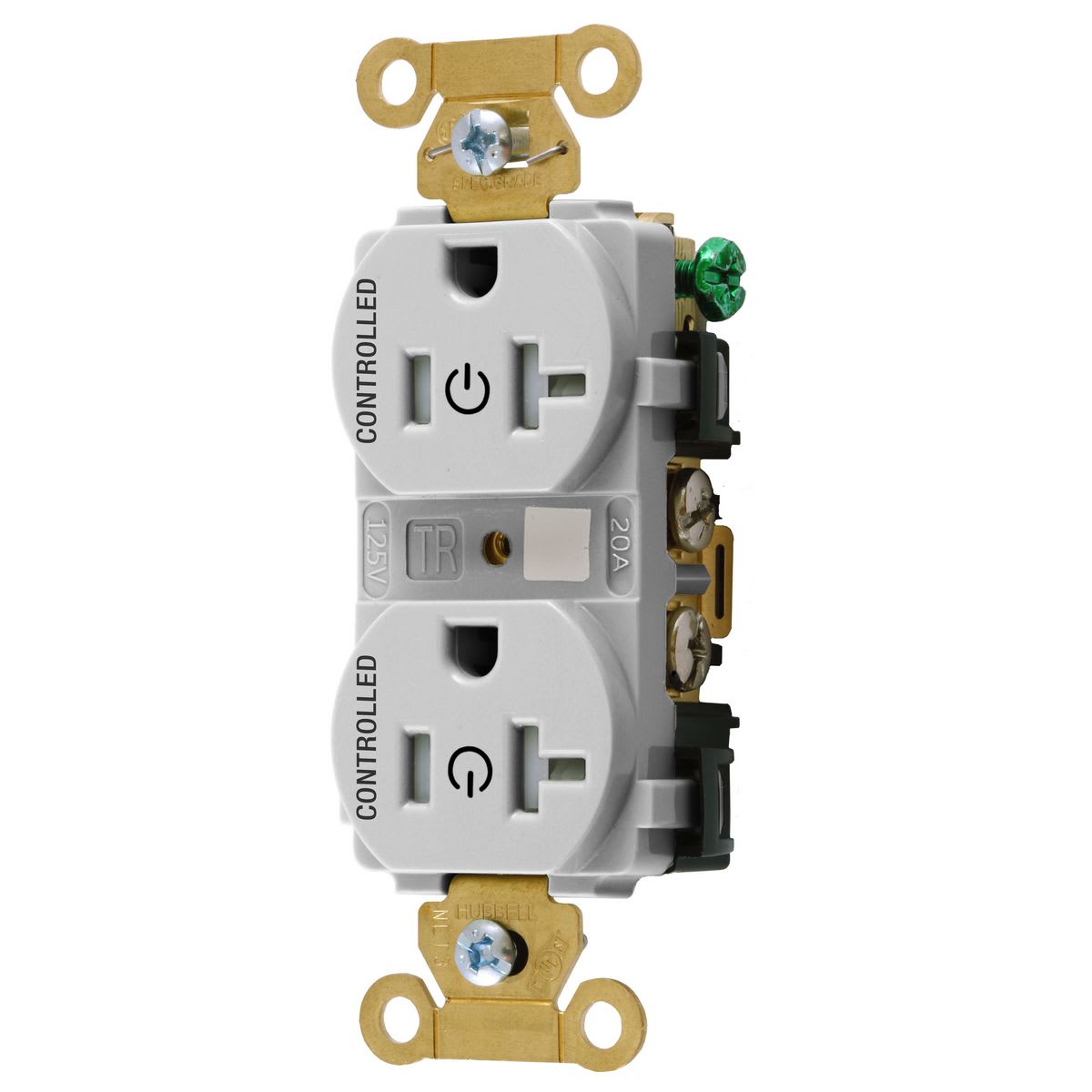

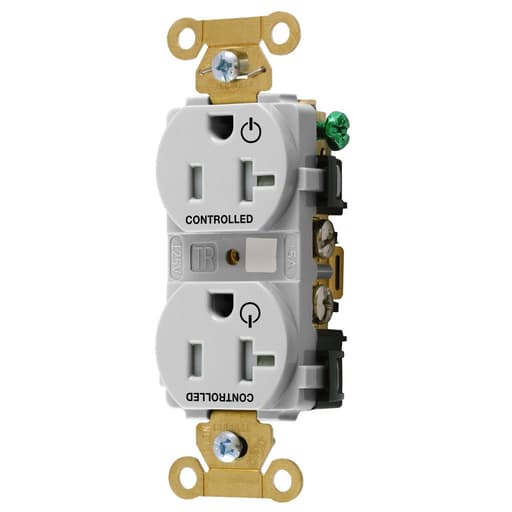

Hubbell Wiring Device - HWDK HBL5362C2WHITR 2/2 CONTROLLED
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585583990
Amperage - 20 Amp
Catalog Number - HBL5362C2WHITR
Color - White
Conductor Size - 12-10 AWG
Packaging
1 ea
EAN
00783585583990
Part #
362833
Catalog #
HBL5362C2WHITR
Commercial reference
HBL5362C2WHITR
12-Digit UPC:
783585583990
Amperage:
20 Amp
Catalog Number:
HBL5362C2WHITR
Color:
White
Conductor Size:
12-10 AWG
Country of Origin:
Mexico
Current:
20 Amp
ERP_productname:
HUB HBL5362C2WHITR 2/2 CONTROLLED IND 20A 125V, TR DUP, WH
Family Brand Name:
Hubbell Incorporated
Heights:
1.7 Inch
Length:
4-1/2 Inch
Number of Poles:
2-2 Pole
Number of Wires:
3,3
Type:
Non-Reversing
Voltage:
125 Volt
Widths:
1.900 in
Wire Size:
12-10 AWG
SoneparProductId:
SKU_US_29745882
Straight Blade Devices,Extra Heavy Duty Standard Duplex Receptacles for Controlled Applications , Two Controlled faces,20A, 125V, 2 Pole, 3 Wire Grounding,White Features: Permanently marked with universal power symbol and the word \"CONTROLLED\" to visually identify receptacles used in automatic energy management systems; Patented TR design eliminates plug-in difficulty and TR complaints; Markings can be read regardless of mounting orientation; Complies with NEC Section 406.3, ASHRAE 90.1, and California Title 24 requirements; Complements Hubbell's Load:Logic® control system or other available energy management system
