Hubbell Wiring Device - HWDK HBL7810 30A 600V 3P DISC SW
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585680507
Amperage - 30 Amp
Catalog Number - HBL7810
Color - Black
Country of Origin - China
Packaging
1 ea
EAN
00783585680507
Part #
172864
Catalog #
HBL7810
Commercial reference
HBL7810
12-Digit UPC:
783585680507
Amperage:
30 Amp
Catalog Number:
HBL7810
Color:
Black
Country of Origin:
China
Current:
30 Amp
ERP_productname:
HUB HBL7810 30A 600V 3P DISC SW
Family Brand Name:
Hubbell Wiring Device-Kellems
Grade:
Industrial
Heights:
1.8 Inch
Horsepower:
20 hp
Length:
6 Inch
Material:
Stainless Steel
Number of Poles:
3 Pole
Type:
Back & Side Wire
Voltage:
600 Volt
Wattage:
18000 Watt
Widths:
4.250 in
SoneparProductId:
SKU_US_285402904

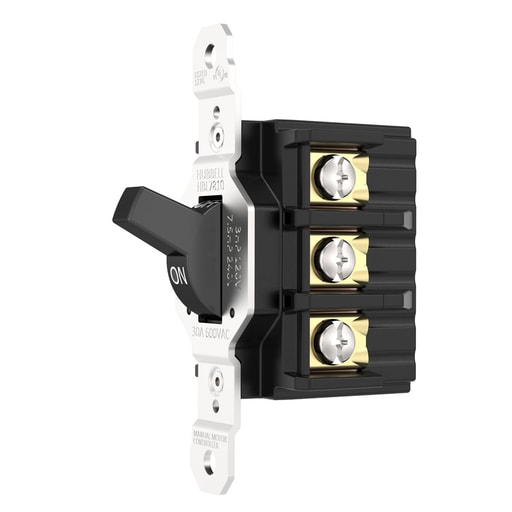

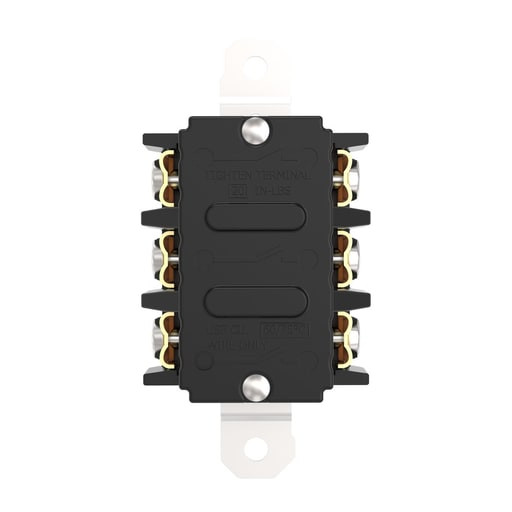

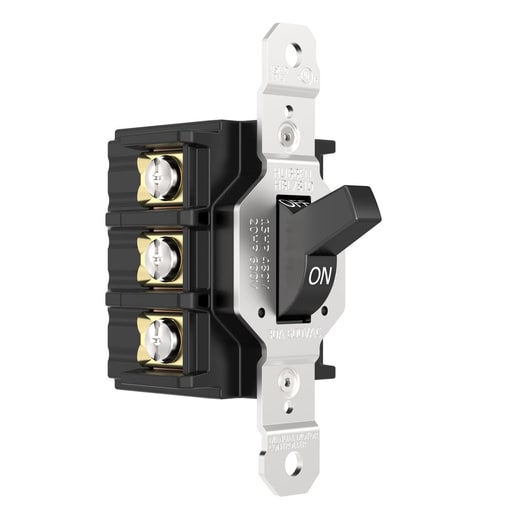

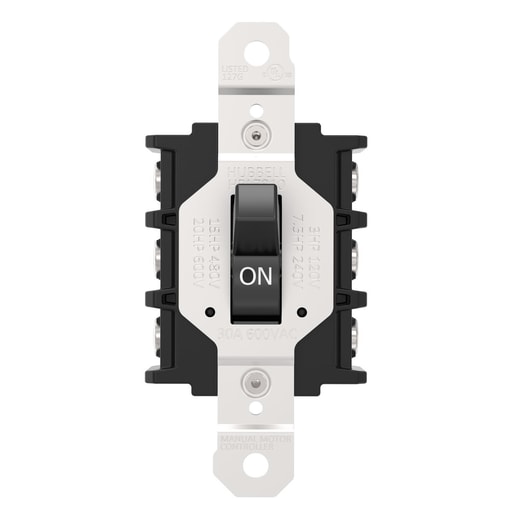

Circuit-Lock® Manual Toggle Controller/Motor Disconnect Switch, 3-pole 30A 600V AC, Back and Side Wired Features: Thermoset body provides high resistance to electrical arc tracking; Strong ON/OFF action with quick-make, slow break operation; Optional Side Finger Guards for close wall applications and finger safe environments; Four large silver alloy contacts per pole has excellent conductivity with maximum longevity; Lubrication-free controller with continued ON/OFF cycling even in harsh, dust and high heat environments; Standard Product
