Hubbell Wiring Device - HWDK HBLDS30VFD NM SLOPED DISC, 30A
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585763064
Catalog Number - HBLDS30VFD
Color - Gray
Country of Origin - Poland
Current - 30 Amp
Packaging
1 ea
EAN
00783585763064
Part #
417689
Catalog #
HBLDS30VFD
Commercial reference
HBLDS30VFD
12-Digit UPC:
783585763064
Catalog Number:
HBLDS30VFD
Color:
Gray
Country of Origin:
Poland
Current:
30 Amp
ERP_productname:
HUB HBLDS30VFD NM SLOPED DISC, 30A UNFUSED, 4X,VFD AUX
Family Brand Name:
Hubbell Wiring Device-Kellems
Heights:
4.12 Inch
Horsepower:
15 hp
Shape:
Rounded Top
Widths:
5.5 in
Wire Size:
14 AWG
SoneparProductId:
SKU_US_543563456

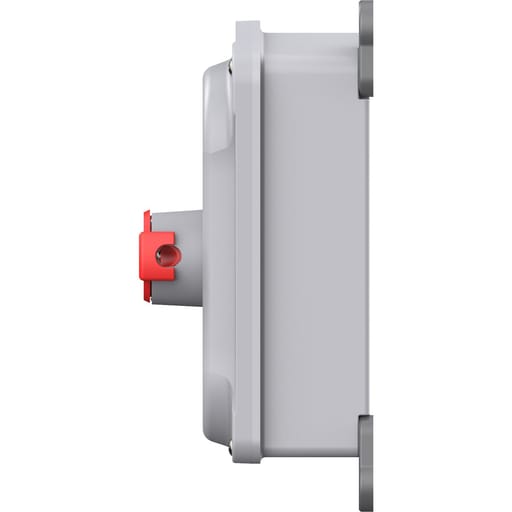

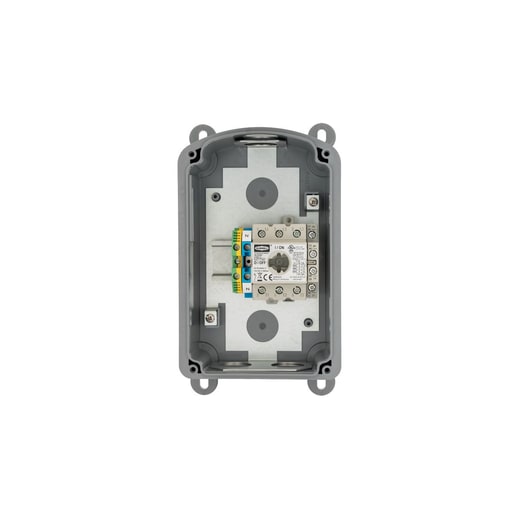

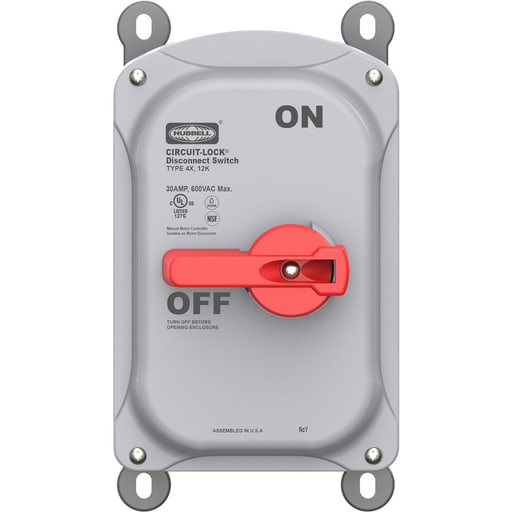

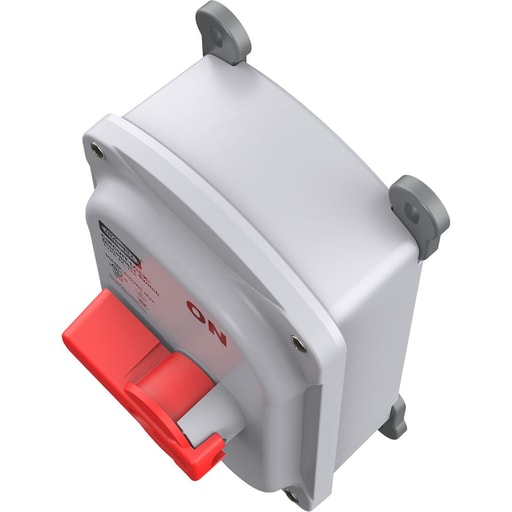

Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 30A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12, Non-Metallic Sloped Top Enclosure, HBLAC2 Aux Contact, cULus, NSF, CE, UL 508 / UL 60947-4-1A Features: Constructed from corrosion and impact resistant UV stabilized non-metallic material; Rounded sloped top enclosure supports best practices in hygienic design by shedding dirt and debris; IP69k and Type 4X,12K water ingress protection and Certified by NSF for hygiene in food processing applications; Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements; Product rating are permanently laser-marked and will not wash off; Factory installed HBLAC2 auxiliary contact is \"Break Before Main Break\", 1 set of N/O contacts for VFD applications
