Hubbell Wiring Device - HWDK HBLDS60TVFD NM TF SLOPED DISC,

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585763675

  • Catalog Number - HBLDS60TVFD

  • Color - Gray

  • Country of Origin - Poland

  • Current - 60 Amp

Packaging

  • 1 ea

EAN

00783585763675

Part #

417675

Catalog #

HBLDS60TVFD

Commercial reference

HBLDS60TVFD

12-Digit UPC:

783585763675

Catalog Number:

HBLDS60TVFD

Color:

Gray

Country of Origin:

Poland

Current:

60 Amp

ERP_productname:

HUB HBLDS60TVFD NM TF SLOPED DISC, 60A UN-F, 4X,VFD AUX

Family Brand Name:

Hubbell Wiring Device-Kellems

Heights:

5.94 Inch

Horsepower:

50 hp

Shape:

Rounded Top

Wire Size:

10 AWG

SoneparProductId:

SKU_US_568643798

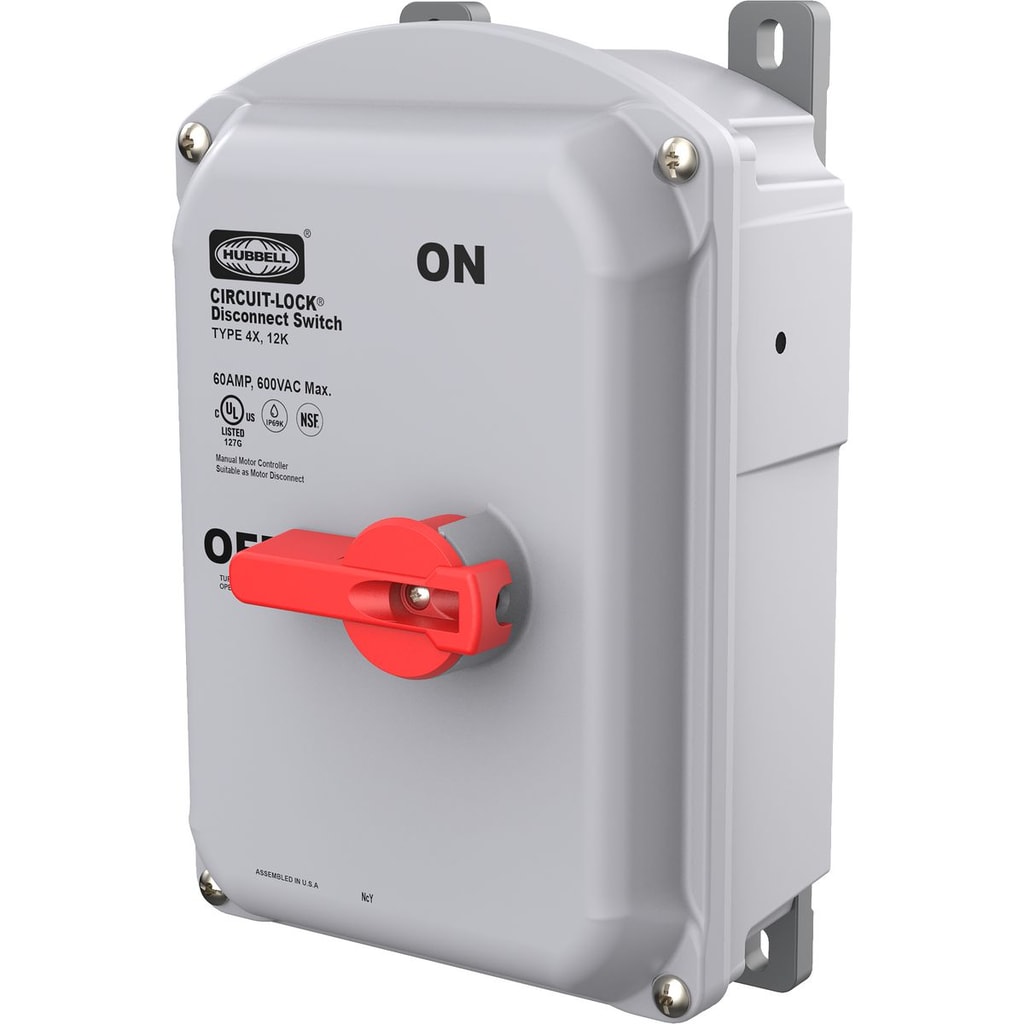

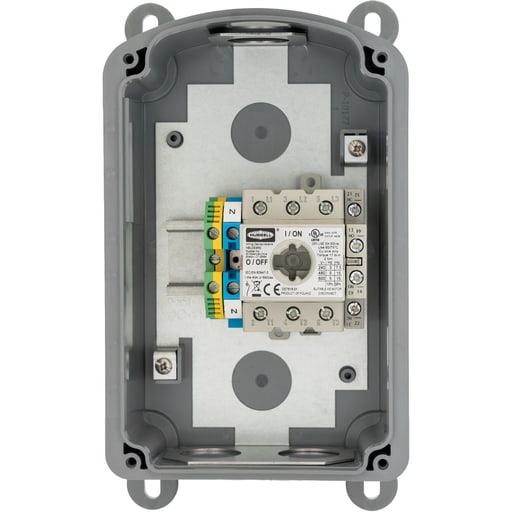

Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 60A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12 Non-Metallic Sloped Top Enclosure for Top Feed Applications, HBLAC2 Aux Contact, cULus, NSF, CE, UL 508 / UL 60947-4-1A Features: Constructed from corrosion and impact resistant UV stabilized non-metallic material; Rounded sloped top enclosure has a single flat for top feed applications and supports best practices in hygienic design by shedding dirt and debris; IP69k and Type 4X,12K water ingress protection and Certified by NSF for hygiene in food processing applications; Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements; Product rating are permanently laser-marked and will not wash off; Factory installed HBLAC2 auxiliary contact is \"Break Before Main Break\", 1 set of N/O contacts for VFD applications
