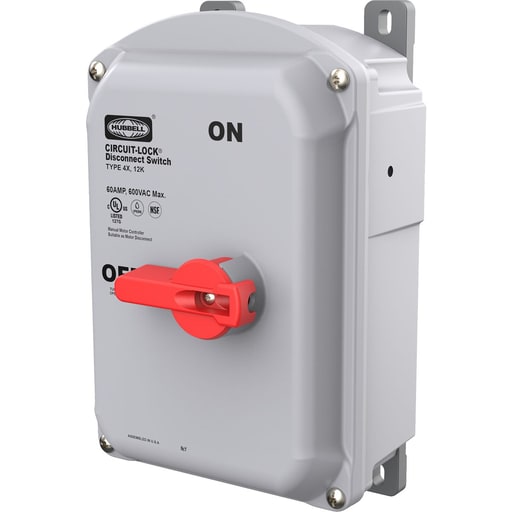

Hubbell Wiring Device - HWDK HBLDS60VFD NM SLOPED DISC, 60A
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585763248
Catalog Number - HBLDS60VFD
Color - Gray
Country of Origin - Poland
Current - 60 Amp
Packaging
1 ea
EAN
00783585763248
Part #
417685
Catalog #
HBLDS60VFD
Commercial reference
HBLDS60VFD
12-Digit UPC:
783585763248
Catalog Number:
HBLDS60VFD
Color:
Gray
Country of Origin:
Poland
Current:
60 Amp
ERP_productname:
HUB HBLDS60VFD NM SLOPED DISC, 60A UNFUSED, 4X,VFD AUX
Family Brand Name:
Hubbell Wiring Device-Kellems
Heights:
5.94 Inch
Horsepower:
50 hp
Shape:
Rounded Top
Widths:
8.750 in
Wire Size:
10 AWG
SoneparProductId:
SKU_US_566875725

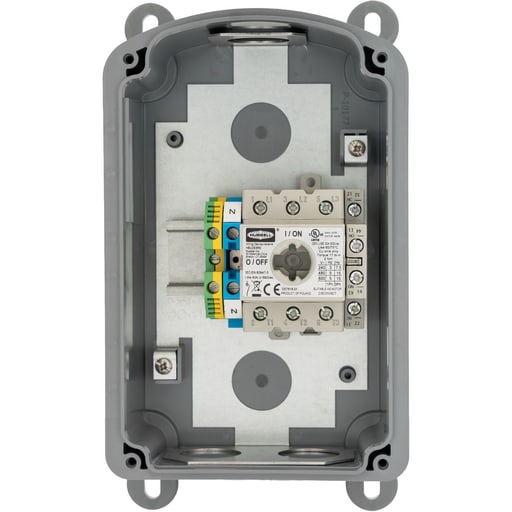

Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 60A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12 Non-Metallic Sloped Top enclosure, HBLAC2 Aux Contact, cULus, NSF, CE, UL 508 / UL 60947-4-1A Features: Constructed from corrosion and impact resistant UV stabilized non-metallic material; Rounded sloped top enclosure supports best practices in hygienic design by shedding dirt and debris; IP69k and Type 4X,12K water ingress protection and Certified by NSF for hygiene in food processing applications; Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements; Product rating are permanently laser-marked and will not wash off; Factory installed HBLAC2 auxiliary contact is \"Break Before Main Break\", 1 set of N/O contacts for VFD applications
