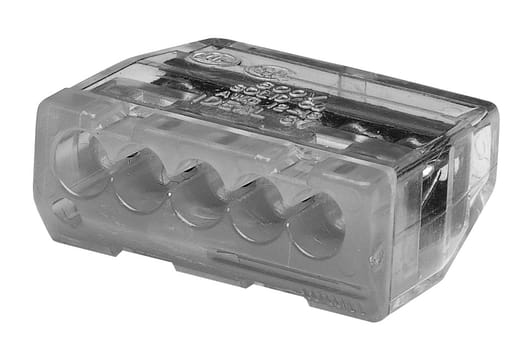

Ideal Industries - Ideal 30-087J Push-In Wire Connector 12Awg 5-Port (150/Jar)

CopyCopy
Ideal Industries - Ideal 30-087J Push-In Wire Connector 12Awg 5-Port (150/Jar)

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783250460779

  • Applications - For Residential, Light Commercial, Lighting Retrofit and Pre-Fab Wiring Systems

  • Buy American - Y

  • Catalog Number - 30-087J

  • Color - Gray

Packaging

  • 150 ea

EAN

00783250460779

Part #

147834

Catalog #

30-087J

Commercial reference

30-087J

12-Digit UPC:

783250460779

Applications:

For Residential, Light Commercial, Lighting Retrofit and Pre-Fab Wiring Systems

Buy American:

Y

Catalog Number:

30-087J

Color:

Gray

Conductor Size:

20-12 AWG Solid, 16-14 AWG (19 Strand or Less), 18 AWG (7 Strand or Less) Stranded, 14-12 AWG (19 Strand or Less), 16 AWG (26 Strand or Less), 318 AWG (16 Strand or Less) Stranded Tin-Bonded

ERP_productname:

IDE 30-087J 5PORT CONN 150/JAR

Family Brand Name:

Ideal Industries

Finish:

Tin Plated

Length:

0.355 Inch

Material:

Polycarbonate

Number of Ports:

5

Size:

0.355 IN Length X 0.907 IN Width X 0.729 IN Height

Sub Brand:

In-Sure™

Tc Connection:

5 Ports

Type:

Push-In

Voltage:

1000 Volt

Wire Size:

12 AWG

SoneparProductId:

SKU_US_25359755

Strip, push, connect . the fastest way to make a connection.The In-Sure® Push-In Wire Connector is perfect for residential, light commercial, lighting retrofit, and pre-fab wiring systems, or any other branch circuit wiring application where a traditional twist-on wire connector would be used. Simply push the wire in . the low insertion force makes it easy.The color-coded shell allows for quick identification of port configuration while the clear polycarbonate housing allows for visual verification of every connection. The ergonomic design is easier to grip which means more comfortable push-in connections. The compact size makes for easy installations in even the tightest spots or shallow boxes, and the tough, flame-retardant shell stands up to the harshest environments.UL Listed, CSA Certified, and rated to 600V . the In-Sure® saves time and improves productivity while perfecting connections. Features: Ergonomic design for easy grip and comfortable installation; Low insertion force for fast and easy connections; Compact size makes installation easy; Clear shell gives visual verification of connection; Tough, UL 94V-2 flame-retardant shell rated at 105±C (221±F)
